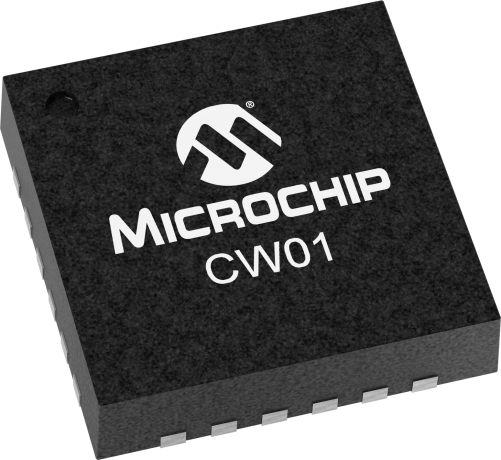

product primary image

CW01

4 Channel Low Phase Noise, Low Power, Continuous Wave Transmitter

Status: In Production

Features:

  • Low phase noise
  • 100V open drain N-channel
  • High speed D flip-flop
  • High speed MOSFET gate driver
  • Up to 200MHz clock input
  • VDD and VLL undervoltage lockout
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

CW01 is a four-channel, low phase noise, continuous wave transmit IC. A high speed D flip-flop is provided to allow the DIN frequency to be aligned to a high frequency clock. The output N-channel is turned on when a logic high is clocked into the D flip-flop. Data are clocked in during the low to high transition. VD1, VD2, VD3 and VD4 are four individual input supply voltages for the N-channel output MOSFET gate drivers. High peak currents are drawn from these gate drives when the output MOSFETs are switching. To minimize jitter caused by voltage ripples, each channel has its own gate drive voltage pin; VD1, VD2, VD3 and VD4. A series ferrite bead and a decoupling capacitor are recommended on each VDX pin to minimize output jitter and channel to channel crosstalk. Both VDD and VLL have undervoltage lockout to prevent spurious turn-on.

Additional Features
    • Low phase noise
    • 100V open drain N-channel
    • High speed D flip-flop
    • High speed MOSFET gate driver
    • Up to 200MHz clock input
    • VDD and VLL undervoltage lockout
Parametrics
Name
Value
# of Channels
4
Phase Noise (dBC)
-171
Rds (on) max (Ω)
7
Output N-CH Breakdown Voltage (V)
+100
Output N-CH Capacitance (pF)
4
Package
QFN-24

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
CW01DB1 Demo Board
CW01DB1 Demo Board ( CW01DB1 )

The CW01 has 6 logic inputs; OE, CLK, DIN1, DIN2, DIN3, and DIN4. Every logic input has a 10kΩ pull down resistor. There are 3 power input voltages: VLL, VDD and VDX. VLL is the input logic level, typically 2.5V. VDD is the level translator, typically 5.0V. VDX is the gate drive voltage, and is at the same voltage level as VDD. High peak currents will be drawn from VDX during switching. Each...

Learn More
Add To Cart

Similar Devices

Product
Price 5K
$3.52
$3.27

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
CW01K6-G
0.044100
0.197667
24
QFN
4x5x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
