Versitile Silicon Carbide (SiC) Modules for Power Electronics
Why Choose Our mSiC Module Solutions?
mSiC modules streamline the integration of Silicon Carbide (SiC) into high-voltage power systems to enhance thermal management, improve system-level optimization and speed up the design validation and certification process. Our portfolio of mSiC modules optimizes performance, reliability and space savings, making them well suited for high-power applications.
Features
- High-temperature operation (Tj = 175°C) with low RDS(on) shift over full temperature range
- Industry-leading gate oxide stability (< 100 mV Vth shift) and gate oxide lifetime
- Avalanche (UIS) ruggedness (> 100k pulses)
- Long short-circuit withstand time
Benefits
- Higher switching frequency and efficiency
- Higher power density
- Improved ruggedness
- Smaller and lighter systems without requiring SiC device redundancy
- Improved cooling requirements that reduce system cost
Advantages We Offer
- Multiple epi sources and dual SiC fabs ensure long-term supply
- Unmatched Unclamped Inductive Switching (UIS) avalanche rating
- Longest gate oxide withstand time
- Client-driven obsolescence practice

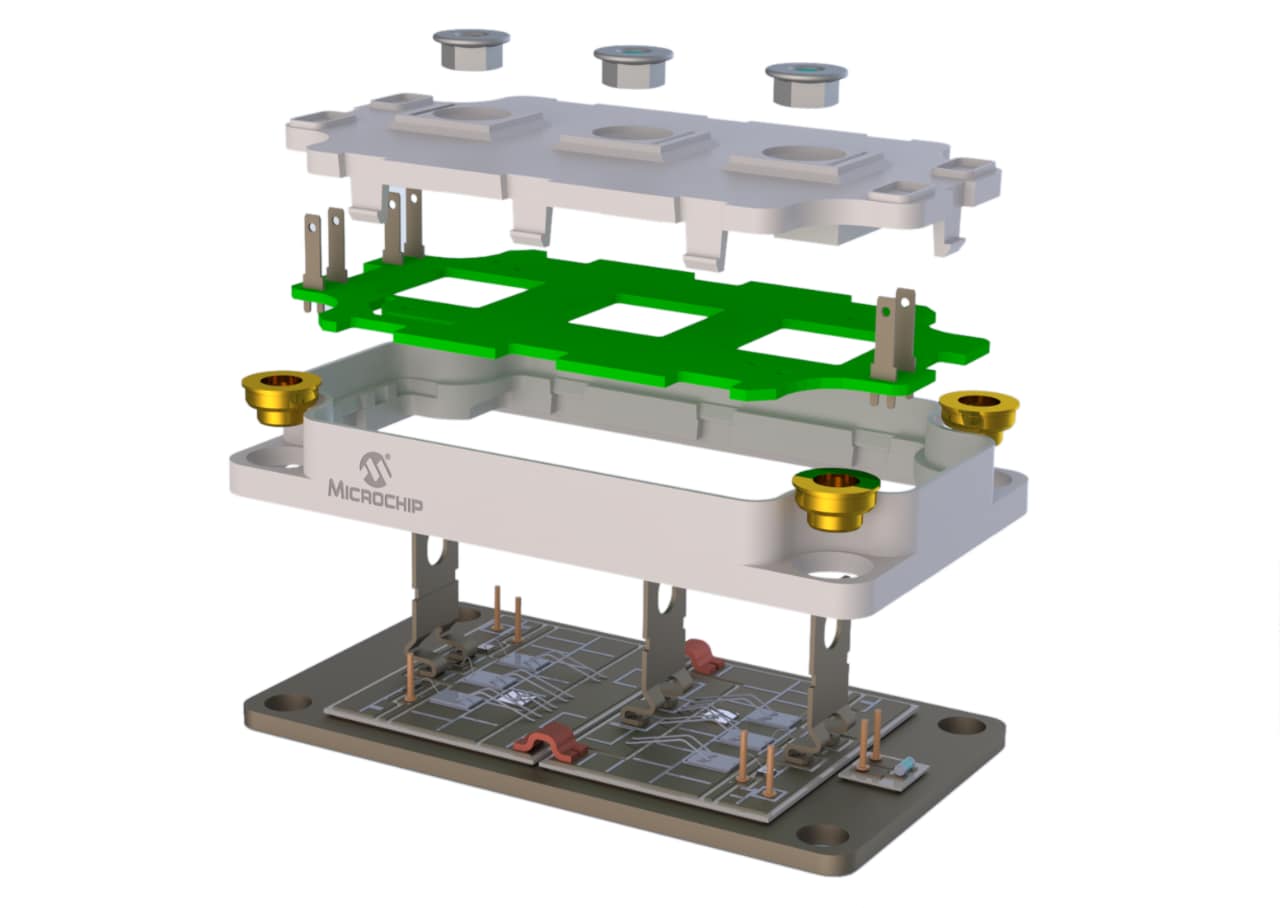

Custom mSiC Power Modules
We have been offering customized power modules since 1983. These power modules are made using different sub-elements, most of which are standard and can be reused to build an infinite array of solutions. We offer a complete engineered solution with mix-and-match capabilities in terms of packages, configuration, performance and cost. Our wide range of available technologies and years of expertise will help speed up your development and reduce the size and cost of your design.
Demo and Evaluation Boards

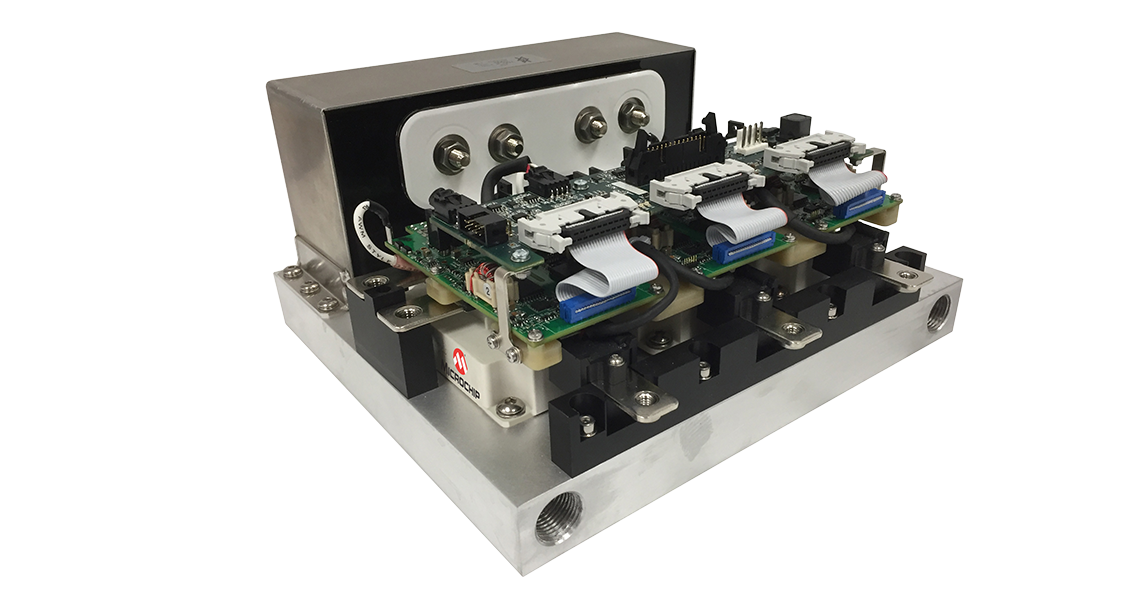

The SP6LIEVB is a development platform designed to facilitate the testing and evaluation of SP6LI mSiC™ MOSFET power modules, enabling engineers to assess performance and optimize designs for high-efficiency power conversion applications.

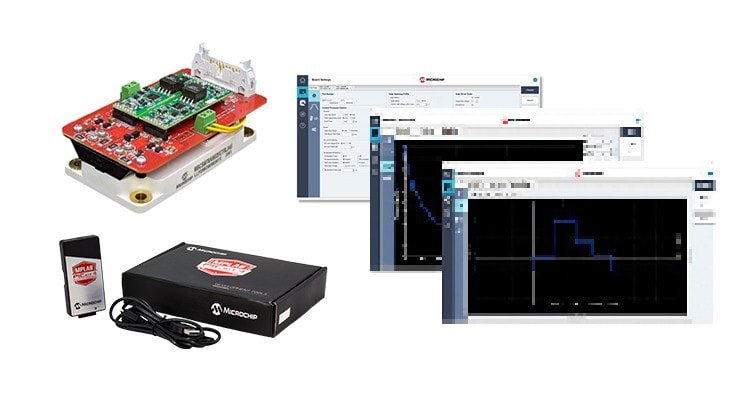

The EV39N46A Single-Channel Module Gate Driver Evaluation Board is a development platform designed to make it easy to evaluate and demonstrate the performance of a single-channel gate driver for Si, IGBT and mSiC™ MOSFETs and modules.
Resources
SiC Design Resources
Accelerate your development journey with our industry-leading hardware and software tools, models, simulations and extensive documentation supporting mSiC products.
Reference Designs and Development Tools
Explore our comprehensive selection of time-saving SiC reference designs and development tools.
SPICE and PLECS Models
Accurate simulation tools for designing, analyzing and optimizing SiC power devices and systems to predict performance, evaluate thermal behavior and streamline development before hardware testing.
MPLAB® SiC Power Simulator
Evaluate device performance quickly by calculating power losses and thermal performance under different conditions for mSiC solutions using lab testing data for common power converter topologies.
