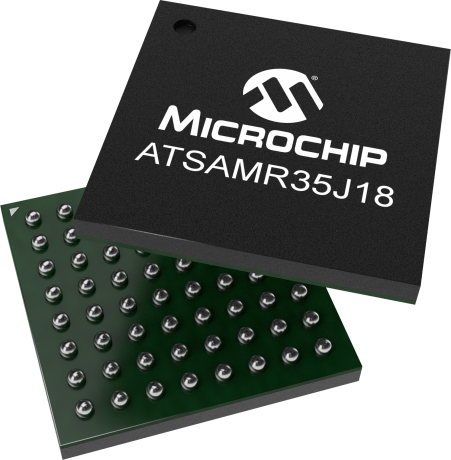

product primary image

ATSAMR35J18

Status: In Production

Features:

  • Industry's lowest power LoRa® SiP device
  • 32-bit Arm® Cortex M0+ MCU and LoRa Transceiver
  • Small form factor: 6x6 mm compact BGA package
  • 256 KB Flash and 40 KB RAM accommodates application code and stack
  • Most cost and size effective solution, eliminating need for external MCU
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The ATSAMR35J18 is an ultra-low power microcontroller combined with a UHF transceiver communication interface. It uses the 32-bit ARM® Cortex®-M0+ processor and offers 256KB of Flash and 40KB of SRAM (8KB battery backed) in a compact 6 x 6 mm BGA package. With ultra-low power sleep currents as low as 790nA, the ATSAMR35J18 devices are ideal for battery powered remote sensor applications.

The highly configurable peripherals include up to 5 SERCOMs (configurable as I2C/SPI /UART/LIN interfaces) with one in the low power domain, 8 12-bit ADC channels, 2 analog comparators and custom configurable logic modules. The transceiver supports LoRa, FSK, MSK and GSK modulation and delivers up to 20 dBm TX power with an RX sensitivity down to -148 dBm.

Supported by certified SAM R34 Xplained Pro Evaluation Kit, Atmel Studio and a detailed chip-down design package, these devices highly simplify the development and accelerate the time to market for LoRa end-nodes.



Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • Industry's lowest power LoRa® SiP device
  • 32-bit Arm® Cortex M0+ MCU and LoRa Transceiver
  • Small form factor: 6x6 mm compact BGA package
  • 256 KB Flash and 40 KB RAM accommodates application code and stack
  • Most cost and size effective solution, eliminating need for external MCU
  • Fully supported 862 to 1020 MHz frequency coverage
  • Up to 20 dBm maximum transmit power
  • Down to -148 dBm Receive Sensitivity
  • Low RX current of 17mA (typical)
  • LoRa Technology, (G)FSK, (G)MSK and OOK Modulation
Parametrics
Name
Value
Type
LoRa SiP
Power Output (dBm)
20.00
Pin Count
64
Packages
TFBGA
IO Pins
27
RF Transmitter
Yes
RF Receiver
Yes
Operating Temperature
-40 to 85C
Frequency Range
862 to 1020 MHz
Sleep
790 nA

Documents

Jump to:

Errata

08/07/2019
147KB

Supporting Collateral

Brochures

07/23/2019
4078KB

Software Libraries/Firmware

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
SAM R34 Xplained Pro Evaluation Kit
SAM R34 Xplained Pro Evaluation Kit ( DM320111 )

The SAM R34 Xplained Pro is a hardware platform designed to evaluate the SAM R34 family of LoRa®  devices.

This FCC, ISED

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMR35J18B-I/7JX
0.538462
64
TFBGA
6x6x1.20
SAC305
e1
ATSAMR35J18BT-I/7JX
0.258667
64
TFBGA
6x6x1.20
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
