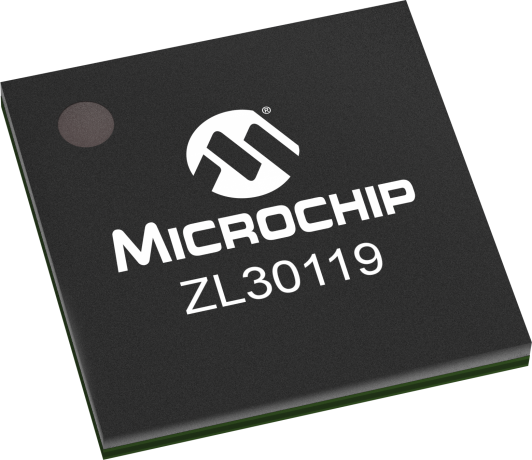

ZL30119

SONET/SDH System Synchronizer

Status: In Production

Features:

  • Synchronizes with standard telecom system references and synthesizes a wide variety of protected telecom line interface clocks that are compliant with Telcordia GR-253-CORE and ITU-T G.813
  • Internal APLL provides standard output clock frequencies up to 622.08 MHz that meet jitter requirements for interfaces up to OC-192/STM-64
  • Provides two DPLLs which are independently configurable through a serial peripheral interface
  • Programmable output synthesizers (P0, P1) generate clock frequencies from any multiple of 8 kHz up to 77.76 MHz in addition to 2 kHz
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The ZL30119 SONET/SDH Line Card Synchronizer is a highly integrated device that provides timing and synchronization for network interface cards. It incorporates two independent DPLLs, each capable of locking to one of eight input references and provides a wide variety of synchronized output clocks and frame pulses.

Additional Features
  • Synchronizes with standard telecom system references and synthesizes a wide variety of protected telecom line interface clocks that are compliant with Telcordia GR-253-CORE and ITU-T G.813
  • Internal APLL provides standard output clock frequencies up to 622.08 MHz that meet jitter requirements for interfaces up to OC-192/STM-64
  • Provides two DPLLs which are independently configurable through a serial peripheral interface
  • Programmable output synthesizers (P0, P1) generate clock frequencies from any multiple of 8 kHz up to 77.76 MHz in addition to 2 kHz
  • Provides 8 reference inputs which support clock frequencies with any multiples of 8 kHz up to 77.76 MHz in addition to 2 kHz
  • Provides 3 sync inputs for output frame pulse alignment
  • Generates several styles of output frame pulses with selectable pulse width, polarity, and frequency
  • Configurable input to output delay, and output to output phase alignment
Parametrics
Name
Value
Type
PDH/SDH
DPLLs or Paths
2
Inputs
8
Output Freq Range
8 khz - 77.76 MHz
NV Memory
N/A
NCO ppb
N/A
Align
3

Documents

Jump to:

Data Sheets


353KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL30119GGG2
0.324600
0.630769
100
LFBGA
9x9x1.72mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
