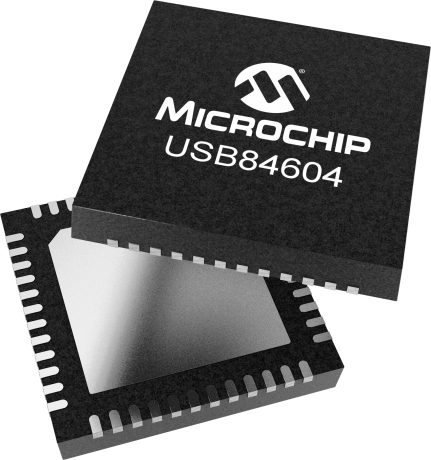

USB84604

Status: In Production

Features:

  • Hub Controller IC with 4 downstream ports
  • Upstream port selectable between HSIC or USB 2.0
  • USB-IF Battery Charger revision 1.2 support on up and downstream ports (DCP, CDP, SDP)
  • Battery charging support for Apple® devices
  • FlexConnect: Downstream port 1 able to swap with upstream port, allowing master capable devices to control other devices on the hub
  • USB to I2C™/SPI bridge endpoint support
  • USB Link Power Management (LPM) support
  • SUSPEND pin for remote wakeup indication to host
  • Start Of Frame (SOF) synchronized clock output pin
  • Vendor Specific Messaging (VSM) support
  • Enhanced OEM configuration options available through OTP or SMBus Slave Port
  • VBUS (5V) or VBAT only operation
  • 3.3V only operation
  • VBAT + 1.8V operation
  • 3.3V + 1.8V operation
  • 48-pin (7x7mm) SQFN, RoHS compliant package
  • Media Hubs
  • Infotainment Head Units
  • Break-Out- Boxex
  • GPS systems
  • Infotainment systems
  • Advancd instrumentations and controls
  • LCD Monitors
  • Multi-function USB Peripherals
  • PC Motherboards
  • Mobile PC Docking
  • Embedded Automotive Systems
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The Microchip USB84604 is a low-power, OEM configurable, MTT (Multi-Transaction Translator) USB 2.0 hub controller with 4 downstream ports and advanced features for embedded USB applications. The USB84604 is compliant with the USB 2.0 Specification and has passed AEC-Q100 testing. It includes advanced USB features, like; USB 2.0 Link Power Management and High-Speed Inter-Chip (HSIC) USB Electrical Specification Revision 1.0 for low power consumption. The USB84604 will attach to an upstream port as a Full-Speed hub or as a Full-/Hi-Speed hub, while the  4 downstreams ports support Low-Speed, Full-Speed, and Hi-Speed (if operating as a Hi-Speed hub).  The HSIC  interface is available as an updsteram port option, and provides  support  Hi-Speed operation, only.

Meeting the desire of consumers for a “connected vehicle,” Microchip’s FlexConnect technology allows for easy port reversals or “role swapping.” The USB84604’s downstream port 1 is able to swap with the upstream host port, thus transferring the host capability to the product connected to the UCH2, such as smartphones and tablets. This unique capability allows for the smartphone ecosystem of software and applications to be connected to the automobile infotainment system.

The USB84604 has been specifically optimized for embedded systems where high performance, and minimal BOM costs are critical design requirements. Standby mode power has been minimized and reference clock inputs can be aligned to the customer’s specific application. Flexible power rail options ease integration into energy efficient designs by allowing the USB84604 to be powered in a single-source (VBUS (5V), VBAT, 3.3V) or a dual-source (VBAT + 1.8, 3.3V + 1.8) configuration.  The USB-IF Battery Charger specificaiton (revision 1.2) is supported on up and downstream ports,. In  addition, all required resistors on the USB ports are integrated into the hub, including all series termination and pull-up/pull-down resistors on the D+ and D– pins

  • DCP: Dedicated Charging Port (Power brick with no data)
  • CDP: Charging Downstream Port (1.5A with data)
  • SDP: Standard Downstream Port (0.5A with data)
  • Custom profiles also supported



The USB84604 provides for a part type option to enable an USB endpoint dedicated for use as a USB to I2C/SPI interface, thus allowing external circuits or devices to be monitored, controlled, or configured via the USB interface.

*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

The USBF129 flash memory device is also offered as a companion chip to the USB84604.  It is factory pre-programmed with application firmware and default hub configuration settings. The USBF129 memory function assures proper functionality, providing for decreased development time and engineering resource, and overall faster time to market.


Additional Features

    Highlights

    • Hub Controller IC with 4 downstream ports
    • High-Speed Inter-Chip (HSIC) support
      • Upstream port selectable between HSIC or USB 2.0
    • USB-IF Battery Charger revision 1.2 support on up and downstream ports (DCP, CDP, SDP)
    • Battery charging support for Apple® devices
    • FlexConnect: Downstream port 1 able to swap with upstream port, allowing master capable devices to control other devices on the hub
    • USB to I2C™/SPI bridge endpoint support
    • USB Link Power Management (LPM) support
    • SUSPEND pin for remote wakeup indication to host
    • Start Of Frame (SOF) synchronized clock output pin
    • Vendor Specific Messaging (VSM) support
    • Enhanced OEM configuration options available through OTP or SMBus Slave Port
    • Flexible power rail support
      • VBUS (5V) or VBAT only operation
      • 3.3V only operation
      • VBAT + 1.8V operation
      • 3.3V + 1.8V operation
    • 48-pin (7x7mm) SQFN, RoHS compliant package

    Target Applications

    • Media Hubs
    • Infotainment Head Units
    • Break-Out- Boxex
    • After market automotive products
      • GPS systems
      • Infotainment systems
      • Advancd instrumentations and controls
    • LCD Monitors
    • Multi-function USB Peripherals
    • PC Motherboards
    • Mobile PC Docking
    • Embedded Automotive Systems
Parametrics
Name
Value
Description
Automotive Hi-Speed, 4 Port Hub
Upstream Port
USB 2.0 or HSIC
USB Speed
Hi-Speed
Downstream Ports
4
MGMT I/F
I2C
ROM I/F
SPI, I2C for OTP
Op Voltage (V)
3.3
Per-Port Switching
Yes
Port Map
Yes
Port Swap
Yes
PHY Boost
Yes
Charging Emulation
BC1.2, Apple
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

Design Guides

02/15/2014
234KB

Silicon Product

03/24/2016
0B

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
USB4604 Evaluation Board
USB4604 Evaluation Board ( EVB-USB4604 )

Learn More
Add To Cart
Software Libraries
MPLAB(r) Connect Configurator - Programming and Configuration Utility

Follow this link for the latest revision of the MPLAB(r) Connect Configurator -> Click

...

Learn More
ProTouch2 USB2530 Linux SDK

Protouch2  Linux SDK  allows  the  user  to  access  the  USB2530  family  of  Microchip  hubs.  It  can  also  be...

Learn More
ProTouch2 USB2530 MAC SDK

Protouch2  MAC  SDK  allows  the  user  to  access  the  USB2530  family  of  Microchip  hubs.  It  can  also  be...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
USB84604AF-B-001080-V02
0.129500
1.269231
48
VQFN
7x7x0.9mm
Matte Tin
e3
USB84604AFT-B-001080-V02
0.129500
0.528000
48
VQFN
7x7x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
