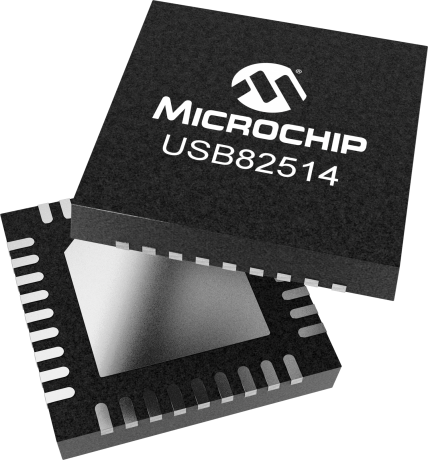

product primary image

USB82514

Status: In Production

Features:

  • High-performance, low-power, small footprint hub controller IC with 4 downstream ports
  • Specifically designed, fabricated, tested, characterized and qualified for automotive applications
  • Fully-compatible with the USB 2.0 specification
  • MultiTRAK™ technology: Dedicated Transaction Translator (TT) for every downstream port provides best-in-class performance
  • PortMap: Flexible port mapping and port disable sequence supports multiple platform designs
  • PortSwap: Programmable USB differential-pair pin locations ease PCB design by aligning USB signal traces directly to connectors
  • PHYBoost: Programmable USB transceiver drive strength for recovering signal integrity due to compromised system environment
  • Enhanced OEM configuration options available through either a single serial I2C EEPROM or SMBus slave port
  • Customizable Vendor ID, Product ID and Device ID
  • Easily configurable as 2, 3 or 4 port hub in common PCB layout
  • Over 30 port configuration options
  • On-chip Power-on Reset saves bill of materials cost
  • Integrated 3.3 V to 1.8 V regulator
  • Enhanced ESD protection performance
  • 36-pin (6 x 6 mm²) QFN lead-free, RoHS-compliant package
  • Temperature range: -40 °C to +85 °C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The USB82514 brings consumer electronics connectivity to cars. With its automotive-grade quality this Hi-Speed 4-Port Hub has the advantages of:

  • High-performance
  • Low-power
  • Small-footprint solution
  • Fully compatible with USB 2.0 Specification

Applications

  • Automotive integrated head unit
  • Automotive consumer connectivity ports
  • Automotive breakout box designs
  • Portable device charging via USB

Description

The USB82514 is a versatile, cost-effective and energy-efficient USB 2.0 hub controller. Leveraging Microchip's MultiTRAK technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB82514 is designed for applications that demand low power and a small footprint without compromising performance. The USB82514 has been specifically designed to meet the stringent requirements of the automotive industry.



  • Over 30 programmable features, including Microchip's unique PortMap, PortSwap and PHYBoost are designed to aid system designers in simplifying PCB layout and optimizing bill-of-material cost.
  • MultiTRAK technology utilizes a dedicated TT per port to maintain consistent Full-Speed data throughput regardless of the number of active downstream connections. MultiTRAK outperforms conventional USB 2.0 hubs with a single TT in USB Full-Speed data transfers by up to 100%, effectively doubling the amount of data throughput for every downstream port.
  • PortMap provides flexible port mapping and disable sequences. The downstream ports of a USB82514 hub can be reordered or disabled in any sequence to support multiple platforms with a single design. For any port that is disabled, the USB82514 automatically reorders the remaining ports to match the USB host controller’s port numbering scheme.
  • PortSwap adds per-port programmability to USB differential-pair pin locations.
    PortSwap allows direct alignment of USB signals (D+/D-) to connectors avoiding uneven trace length or crossing of the USB differential signals on the PCB.
  • PHYBoost enables programmable four-level USB signal drive strengths in downstream port transceivers. PHYBoost attempts to restore USB signal integrity that has been compromised by system level variables such as poor PCB layout, long cables, etc. The graphics at the right show an example of Hi-Speed USB eye diagrams before (PHYBoost at 0%) and after (PHYBoost at 12%) signal integrity restoration in a compromised system environment.

Additional Features
    • High-performance, low-power, small footprint hub controller IC with 4 downstream ports
    • Specifically designed, fabricated, tested, characterized and qualified for automotive applications
    • Fully-compatible with the USB 2.0 specification
    • MultiTRAK™ technology: Dedicated Transaction Translator (TT) for every downstream port provides best-in-class performance
    • PortMap: Flexible port mapping and port disable sequence supports multiple platform designs
    • PortSwap: Programmable USB differential-pair pin locations ease PCB design by aligning USB signal traces directly to connectors
    • PHYBoost: Programmable USB transceiver drive strength for recovering signal integrity due to compromised system environment
    • Enhanced OEM configuration options available through either a single serial I2C EEPROM or SMBus slave port
    • Customizable Vendor ID, Product ID and Device ID
    • Easily configurable as 2, 3 or 4 port hub in common PCB layout
    • Over 30 port configuration options
    • On-chip Power-on Reset saves bill of materials cost
    • Integrated 3.3 V to 1.8 V regulator
    • Enhanced ESD protection performance
    • 36-pin (6 x 6 mm²) QFN lead-free, RoHS-compliant package
    • Temperature range: -40 °C to +85 °C
Parametrics
Name
Value
Description
Automotive-Grade USB 2.0 High-Speed 4-Port Hub
Upstream Port
USB 2.0
USB Speed
High Speed
Downstream Ports
4
ROM I/F
I2C
Op Voltage (V)
3.3
MultiTRAK Tech
Yes
Port Map
Yes
Port Swap
Yes
PHY Boost
Yes
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
USB82514 Auto-Grade USB 2.0 High-Speed 4-Port Hub Evaluation Board
USB82514 Auto-Grade USB 2.0 High-Speed 4-Port Hub Evaluation Board ( EVB-USB82514 )

The Microchip Automotive Grade USB 2.0 4-Port Hub is designed, fabricated, tested, characterized and qualified for automotive applications. The USB82514 MultiTRAK™ is a low-power, OEM configurable, full featured Hi-Speed USB 2.0 compliant hub contnroller IC with four down-stream ports for embedded USB solutions. The EVB-USB82514 36-Pin QFN Evaluation Board demonstrates a stand alone...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
USB82514AM-A-V03
0.088400
0.836735
36
VQFN
6x6x0.9
Matte Tin
e3
USB82514AMR-A-V03
0.088400
0.243333
36
VQFN
6x6x0.9
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
