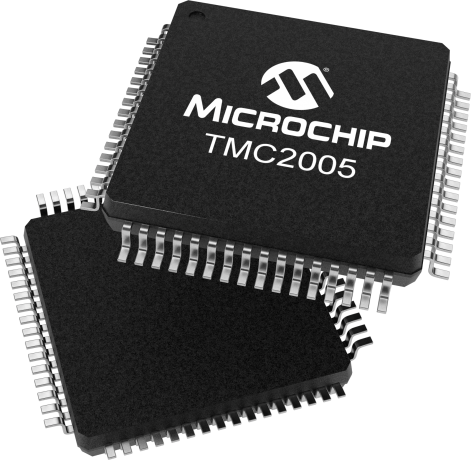

TMC2005

Status: In Production

Features:

  • ARCNET Hub Circuit for ARCNET Protocol (Data Rate from 156.25 Kbps to 10 Mbps)
  • Able to Connect Various Transceivers Directly
  • Device Includes TX/RX Timing Circuit for 5 Port Hub and Direction Control Circuit, Jitter Correct Circuit and Noise Cancel Circuit
  • Easy to Design 8 or 12 Port Hub
  • Can Connect with HYC9088 in Normal Mode
  • Can Connect with RS485 Transceiver, HYC5000/4000/2000, Opt Module and TTL Interface in Backplane Mode
  • Supports Both Normal and Backplane Mode at the Same Time for Media Conversion
  • +5V Single Power
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

When configuring a network, the maximum number of nodes and the maximum cable length are limited by the electric capacity of the transceiver. In this case, the network is expanded by a piece of equipment called a "HUB" or "repeater". It may be necessary to have a converter between coax, T/P and the fiber cable. It is easy to design a HUB or repeater because the TMC2005 has various features for expanding such a network.It can connect with HYC9088, RS485 transceiver, HYC5000/4000/2000 and TTL interface for optical module. It can connect with three different transceivers at the same time and convert the media of each. (The data rate cannot be converted. It is necessary to operate all nodes in the same network at the same data rate.) The Hubs can be expanded by connecting two or more TMC2005 chips. By setting one of 5 ports to open-drain output, the Hub can be expanded to either 12 or 16 ports.

Additional Features
    • ARCNET Hub Circuit for ARCNET Protocol (Data Rate from 156.25 Kbps to 10 Mbps)
    • Able to Connect Various Transceivers Directly
    • Device Includes TX/RX Timing Circuit for 5 Port Hub and Direction Control Circuit, Jitter Correct Circuit and Noise Cancel Circuit
    • Easy to Design 8 or 12 Port Hub
    • Can Connect with HYC9088 in Normal Mode
    • Can Connect with RS485 Transceiver, HYC5000/4000/2000, Opt Module and TTL Interface in Backplane Mode
    • Supports Both Normal and Backplane Mode at the Same Time for Media Conversion
    • +5V Single Power
Parametrics
Name
Value
Standalone Arcnet Cntrl
ArcNET 5 Port HUB Controller
MAC
Repeater Logic
PHY
External
TX/RX RAM Buffer(Bytes)
Minimal FIFO Bit Repeaterr
Deterministic Protocola (Token Passing)
Yes
Operating Voltage (V)
+5V
Max Speed (MHz)
10Mbps
Interface
HYC9088, HYC5000, RS485, Opt. Module, TTL Interface in Backplane Mode
Temp Range Max (°C)
85
Comments
64 pin TQFP, Lead-Free, RoHS Compliant

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$6.27
$13.91
$15.80
$25.84
$13.37
$11.91
$12.36
$6.74

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TMC2005-JT
0.368300
1.087500
64
LQFP
10x10x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
