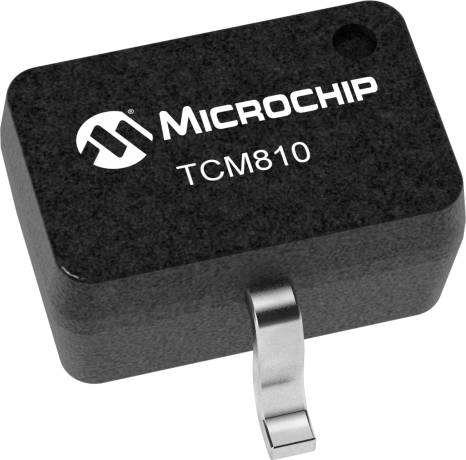

product primary image

TCM810

3-Pin Microcontroller Reset Monitor

Status: In Production

Features:

  • Precision VDD Monitor for 3.0V, 3.3V, 5.0V
  • Nominal System V Supplies
  • 140msec Guaranteed Minimum RESET, RESET Output Duration
  • RESET Output Guaranteed to VDD = 1.0V (TCM809)
  • Low 12µA Supply Current
  • VDD Transient Immunity
  • No External Components
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The TCM809 and TCM810 are cost-effective system supervisor circuits designed to monitor VDD in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20 µsec of VDD falling through the reset voltage threshold. Reset is maintained active for a minimum of 140msec after VDD rises above the reset threshold. The TCM810 has an active-high RESET output while the TCM809 has an active-low RESET output. The output of the TCM809 is guaranteed valid down to VDD = 1V. Both devices are available in a 3-Pin SOT-23B and 3-pin SC-70 package. The TCM809/810 are optimized to reject fast transient glitches on the VDD line. Low supply current of 17µA (VDD = 3.3V) makes these devices suitable for battery powered applications.

Additional Features
    • Precision VDD Monitor for 3.0V, 3.3V, 5.0V
    • Nominal System V Supplies
    • 140msec Guaranteed Minimum RESET, RESET Output Duration
    • RESET Output Guaranteed to VDD = 1.0V (TCM809)
    • Low 12µA Supply Current
    • VDD Transient Immunity
    • No External Components
Parametrics
Name
Value
Product Type
Supervisor
Operating Temp. Range (°C)
-40 to 125
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
4.50, 4.25, 3.89, 3.00, 2.85, 2.55, 2.25
Reset Type
Active High
Output
Push-Pull
Typical Reset Pulse Width (ms)
140
Typical Supply Current (µA)
12

Documents

Jump to:

Data Sheets


232KB

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - TCM810

The TCM809 and TCM810 are cost-effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components...

Learn More
