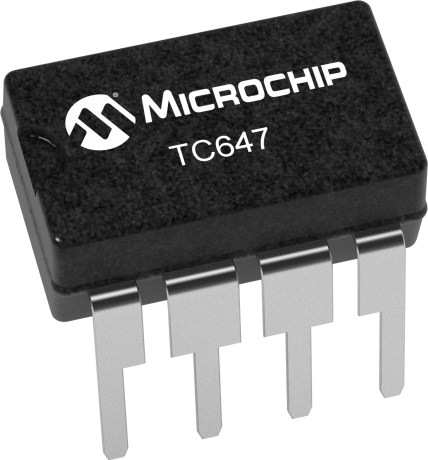

product primary image

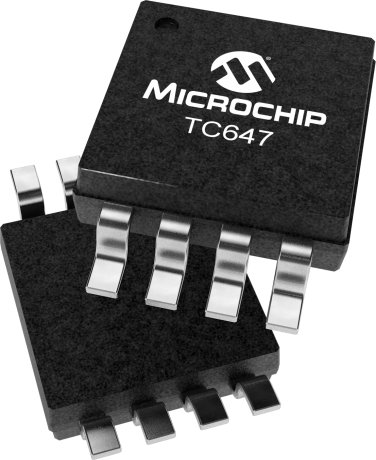

TC647

Status: In Production

Features:

  • Temperature Proportional
  • Fan Speed for Acoustic Control and Longer Fan Life
  • Efficient PWM Fan Drive
  • 3.0V to 5.5V Supply Range
  • Supports Any Fan Voltage!
  • FanSense™Fault Detection Circuits Protect Against Fan Failure and Aid
  • System Testing
  • Shutdown Mode for "Green" Systems
  • Supports Low Cost NTC/PTC Thermistors
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The TC647 is a switch mode fan speed controller for use with brushless DC motors. Temperature proportional speed control is accomplished using pulse width modulation. A thermistor (or other voltage output temperature sensor) connected to VIN furnishes the required control voltage of 1.25V to 2.65V (typical) for 0% to 100% PWM duty cycle. Minimum fan speed is set by a simple resistor divider on the VMIN input. An integrated Start-up Timer ensures reliable motor start-up at turn-on, coming out of Shutdown Mode, or following a transient fault. A logic low applied to VMIN, Pin 3, causes fan shutdown. The TC647 also features Microchip Technology's proprietary FanSense™ ™ technology for increasing system reliability. In normal fan operation, a pulse train is present at SENSE, Pin 5, indicating normal operation. A Missing-pulse Detector monitors this pin during normal fan operation. A stalled, open, or unconnected fan causes the TC647 to trigger its start-up timer once. If the fault persists, the FAULT output goes low, and the device is latched in its Shutdown Mode. The TC647 is available in a standard 8-Pin PDIP, MSOP and SOIC packages. Commercial and industrial temperature ranges are available in both package options.

Additional Features
    • Temperature Proportional
    • Fan Speed for Acoustic Control and Longer Fan Life
    • Efficient PWM Fan Drive
    • 3.0V to 5.5V Supply Range
    • Fan Voltage Independent of TC647 Supply Voltage
      • Supports Any Fan Voltage!
    • FanSense™Fault Detection Circuits Protect Against Fan Failure and Aid
    • System Testing
    • Shutdown Mode for "Green" Systems
    • Supports Low Cost NTC/PTC Thermistors
Parametrics
Name
Value
Device Description
Fan Manager
Typical Accuracy (°C)
Depends on external thermistor
Max. Supply Current (µA)
1000
Max. Accuracy @ 25°C (°C)
Depends on external thermistor
Fan Sense
Yes
External Temp Input
Yes
High/Low PWM Freq
Low
Temp Range (°C)
-40 to +85
Vcc Range (V)
+3.0 to +5.5

Documents

Jump to:

Data Sheets


368KB

Development tools data is currently unavailable.

Similar Devices

Product
Description
Typical Accuracy (º)
Temp Range
Price 5K

±0.5
-40 - +125
$0.79
Fan Manager
Depends on external thermistor
-40 - +85
$0.96
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
Depends on external thermistor
-40 - +85
$0.96
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
Depends on external thermistor
-40 - +85
$0.91
Fan Manager
Depends on external thermistor
-40 - +85
$0.81
Fan Manager
Depends on external thermistor
-40 - +85
$0.85
Fan Manager
Depends on External Thermistor
-40 - +85
$0.79
Fan Manager
Depends on external thermistor
-40 - +85
$0.91
Fan Manager
Depends on external thermistor
-40 - +85
$0.81
Fan Manager
1
-40 - +125
$1.09
Fan Manager
1
-40 - +125
$1.08
Fan Manager
1
-40 - +125
$1.30
Fan Manager
1
-40 - 125
$1.30
Dual SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.45
Dual SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.52
Single SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.28
Single SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.33
Predictive Fan Fault Detector
N/A
-40 - +85
$0.96

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC647BEUA
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
TC647BEUATR
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
TC647EUA
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
TC647EUATR
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
TC647VUA
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
TC647VUATR
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
TC647BEOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647EOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647EOATR
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647VOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647VOATR
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647BEOATR
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC647BEPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC647VPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
