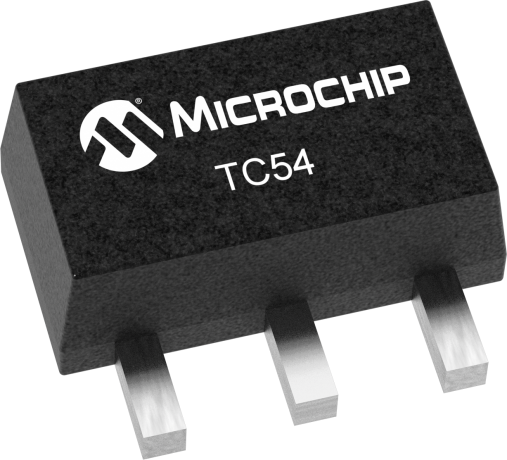

TC54

CMOS Voltage Detector for Battery Applications

Status: In Production

Features:

  • Precise Detection Thresholds Standard ± 2.0%
  • Low Current Drain: Typ. 1uA
  • Wide Detection Range: 1.1V to 6.0V
  • Wide Operating Voltage Range: 0.7V to 10V
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC54 Series are CMOS voltage detectors, suited especially for battery-powered applications because of their extremely low 1uA operating current and small surface-mount packaging. Each part is laser trimmed to the desired threshold voltage which can be specified from 1.1V to 6.0V, for a 2% tolerance. The device includes a comparator, low-current high-precision reference, laser-trimmed divider,hysteresiscircuit and output driver. The TC54 is available with either an open-drain or complementary output stage. In operation, the TC54's output (VOUT) remains in the logic HIGH state as long as VIN is greater than the specified threshold voltage (VDET– ). When VIN falls below VDET– the output is driven to a logic LOW. VOUT remains LOW until VIN rises above VDET   by an amount VHYST, whereupon it resets to a logic HIGH.

**3L TO-92 package (ZB) is no longer available due to the End of Life (EOL) status.



Additional Features
    • Precise Detection Thresholds Standard ± 2.0%
    • Low Current Drain: Typ. 1uA
    • Wide Detection Range: 1.1V to 6.0V
    • Wide Operating Voltage Range: 0.7V to 10V
Parametrics
Name
Value
Product Type
Detector
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
0.7 - 10
Nominal Reset Voltage (V)
4.21, 4.12, 2.94, 2.84, 2.65, 2.06, 1.37 (1.4-6V)
Reset Type
Active Low
Output
CMOS push-pull or Open drain
Typical Supply Current (µA)
1
