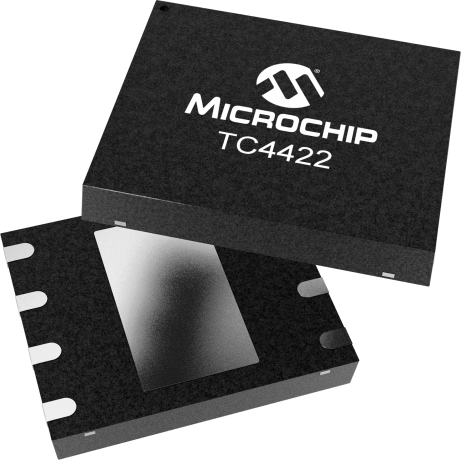

product primary image

TC4422

9A Non-Inverting High-Speed MOSFET Driver

Status: In Production

Features:

  • Tough CMOS ™ Construction
  • High Peak Output Current: 9A
  • High Continuous Output Current: 2A Max
  • 30nsec with 4,700pF Load
  • 180nsec with 47,000pF Load
  • Short Internal Delays: 30nsec Typ.
  • Low Output Impedance: 1.4? Typ.
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they cannot be latched under any conditions within their power and voltage ratings; they are not subject to damage or improper operation when up to 5V of ground bounce is present on their ground terminals; they can accept, without either damage or logic upset, more than 1A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4kV of electrostatic discharge. The TC4421/4422 inputs may be driven directly from either TTL or CMOS (3V to 18V). In addition, 300mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.

For product comparison, please consider: TC4422A

Additional Features
    • Tough CMOS ™ Construction
    • High Peak Output Current: 9A
    • High Continuous Output Current: 2A Max
    • Fast Rise and Fall Times:
      • 30nsec with 4,700pF Load
      • 180nsec with 47,000pF Load
    • Short Internal Delays: 30nsec Typ.
    • Low Output Impedance: 1.4? Typ.

Documents

Jump to:

Data Sheet

08/30/2013
791KB
02/05/2013
366KB
02/05/2013
236KB

Software Library

Product Line Card

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart
Software Libraries
Analog Simulation - TC4422

The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC4422ESM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
TC4422ESM713
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
TC4422ESMG
0.124400
0.277778
8
SOIJ
.208in
Matte Tin
e3
TC4422ESMG713
0.124400
0.333333
8
SOIJ
.208in
Matte Tin
e3
TC4422AVOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4422AVOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4422AVOA713-VAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4422MJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC4422CPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4422EPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4422VPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4422AVPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4422CAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4422EAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4422VAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4422AVAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4422VMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4422VMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4422AVMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4422AVMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
