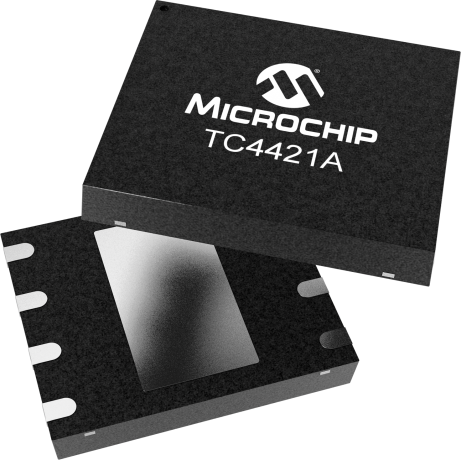

product primary image

TC4421A

9A Inverting High-Speed MOSFET Driver

Status: In Production

Features:

  • Latch up Immunity
  • Matched Rise and Fall Times
  • Input withstands negative swings up to 5V
  • High peak Output current of 9A
  • High Capacitive Load drive Capability 10nF in 25ns
  • Wide Operatig Range 4.5v to 18v
  • Low Propagation Delay Times <50ns
  • Low Output Impedance 800 milliohm
  • low supply current (450ua w/ logic 1 input)
  • Can Withstand Up to 1.5A of Output Reverse Current
  • Reduced shoot through current
  • Wide Operating Temperature Range -55 to +125
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC4421A is a high speed, high current, rugged, and effi cient MOSFET driver. The TC4421A is an inverting driver. This device is intended to improve upon the current TC4421 9A MOSFET driver.

Additional Features
    • Latch up Immunity
    • Matched Rise and Fall Times
    • Input withstands negative swings up to 5V
    • High peak Output current of 9A
    • High Capacitive Load drive Capability 10nF in 25ns
    • Wide Operatig Range 4.5v to 18v
    • Low Propagation Delay Times <50ns
    • Low Output Impedance 800 milliohm
    • low supply current (450ua w/ logic 1 input)
    • Can Withstand Up to 1.5A of Output Reverse Current
    • Reduced shoot through current
    • Wide Operating Temperature Range -55 to +125
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Inverting
Peak Output Current (source/sink, A)
9.0/9.0
Output Resistance (source/sink, Ω)
2.0/1.6
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
60/60
Rise/Fall Time (Tr/Tf, ns)
28/26
Capacitive Load Drive
4700 pF in 15 ns

Documents

Jump to:
×

Data Sheet

TC4421A/TC4422A Data Sheet
02/05/2013
366KB

Application Notes

Download All
01327A - Avoiding MOSFET Driver Overstress
07/07/2010
455KB
AN763 - Latch-Up Protection for MOSFET Drivers
10/22/2009
136KB
AN786 - Considerations for Driving Power MOSFETs in High-Current, Switch Mode Regulators
11/12/2002
202KB
AN799 - Matching MOSFET Drivers to MOSFETs
08/03/2004
182KB
AN898 - Determining MOSFET Driver Needs for Motor Drive Applications
12/31/2003
512KB

Brochures

Automotive Recommended Product Selector Guide
09/16/2014
7598KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC4421AVOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421AVOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421AVOA713-VAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421AVPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4421AVAT
1.983900
3.120000
5
TO-220

Matte Tin
e3
TC4421AVMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421AVMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
