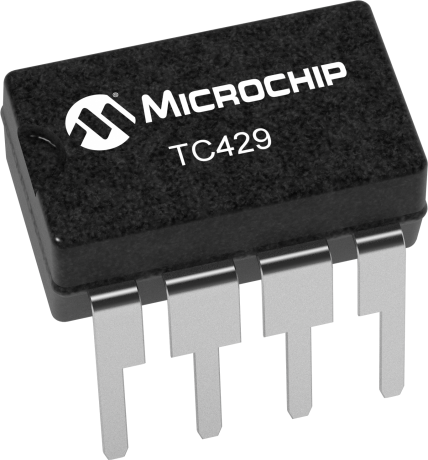

product primary image

TC429

Status: Not Recommended for new designs

Features:

  • High 6A Peak Output Current
  • Wide 7 to 18V Operating Voltage Range
  • High-Impedance CMOS Logic Input
  • Logic Input Threshold Independent of Supply Voltage
  • 5mA Maximum With Logic 1 Input
  • 0.5mA Maximum With Logic 0 Input
  • Output Voltage Swing Within 25mV of Ground or VDD
  • Short 75ns Maximum Delay Time
  • 35nsec Maximum Rise and Fall Time With 2500pF Capacitive Loads
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The TC429 is a high-speed, single output, CMOS-level translator and driver. Designed specifically to drive highly capacitive power MOSFET gates, the TC429 features 2.5 Ω output impedance and 6 A peak output current drive. This device can typically switch a  2500 pF capacitive load iun 25 nsec, with a typical delay time through the device of 60 nsec. Rapidly switching the load will minimize MOSFET transition power loss. The device will accept TTL and CMOS input logic voltages, or any voltage input up to 18V without damage, producing an output signal which will swing within 25 mV of the power rails. Logic input current is under 10 µA, making direct interface to CMOS/bipolar switch-mode power supply controllers easy, input "speed-up" capacitors are not required, and the CMOS design minimizes quiescent power supply current requirements. For noninverting applications, or applications requiring latch-up protection, see the MCP1406/7 data sheet.

Please consider this device MCP1406

Additional Features
    • High 6A Peak Output Current
    • Wide 7 to 18V Operating Voltage Range
    • High-Impedance CMOS Logic Input
    • Logic Input Threshold Independent of Supply Voltage
    • Low Supply Current
      • 5mA Maximum With Logic 1 Input
      • 0.5mA Maximum With Logic 0 Input
    • Output Voltage Swing Within 25mV of Ground or VDD
    • Short 75ns Maximum Delay Time
    • High Capacitive Load Drive Capability
      • 35nsec Maximum Rise and Fall Time With 2500pF Capacitive Loads
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Inverting
Peak Output Current (source/sink, A)
6.0/6.0
Output Resistance (source/sink, Ω)
2.5/2.5
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
53/60
Rise/Fall Time (Tr/Tf, ns)
35/35
Capacitive Load Drive
2500 pF in 35ns
Features
Not Recommended for New Desings, Please Consider: MCP1406

Documents

Jump to:

Data Sheets


351KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC429EOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC429EOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC429CPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC429EPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
