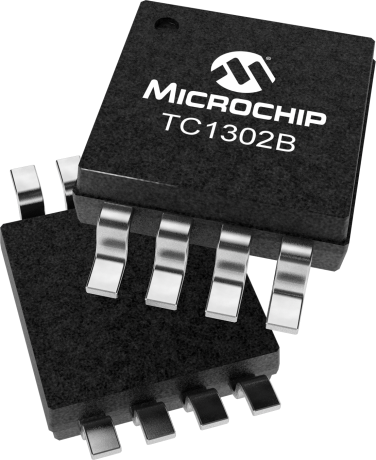

TC1302B

Low Quiescent Current Dual Output LDO

Status: In Production

Features:

  • Dual Output LDO
  • Low Dropout Voltage
  • Low Supply Current: 116 µA, Typical
  • Reference Bypass Input for Low Noise Operation
  • Both Output Voltages Stable with a Minimum of 1 µF Ceramic Output Capacitor
  • Power Saving Shutdown Mode of Operation
  • Wake up from SHDN: 5.3 µsec. Typical
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC1301A/B combines two Low Drop Out (LDO) regulators and a microcontroller RESET function while the TC1302A/B is purely a dual LDO. Both parts are available in single 8-pin MSOP or DFN package. The TC1301A/B & TC1302A/B feature low dropout voltages as low as 104 mV @ 300 mA, low quiescent current consumption at 116 µA typical and a voltage output accuracy of +/- 0.5%. Several fixed output voltage and detector voltage combinations are available. A reference bypass pin is available for TC1301A/B to further reduce output noise and improve the power supply rejection ratio of both LDOs. The TC1301A/B & TC1302A/B are stable over all line and load conditions with a minimum of 1 µF of ceramic output capacitance and utilizes a unique compensation scheme to provide fast dynamic response to sudden line voltage and load current changes.

Additional Features
    • Dual Output LDO
    • Low Dropout Voltage
    • Low Supply Current: 116 µA, Typical
    • Reference Bypass Input for Low Noise Operation
    • Both Output Voltages Stable with a Minimum of 1 µF Ceramic Output Capacitor
    • Power Saving Shutdown Mode of Operation
    • Wake up from SHDN: 5.3 µsec. Typical
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
2
IOUT #1
300
IOUT #2
150
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.7
VIN Max (V)
6
VOUT (V)
1.5 - 3.3
Voltage Drop Typ (mV)
150
IGND Typ (µA)
114
Tol Typ %
±0.5
PSRR 1 kHz (dB)
58
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets

06/24/2015
503KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart
