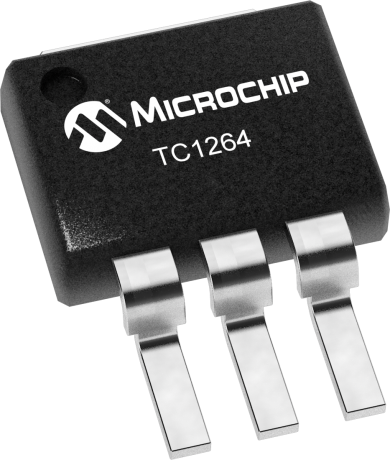

product primary image

TC1264

800mA Fixed Output CMOS LDO with Shutdown

Status: In Production

Features:

  • Very Low Dropout Voltage
  • High Output Voltage Accuracy
  • Standard or Custom Output Voltages
  • Over-Current and Over-Temperature Protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

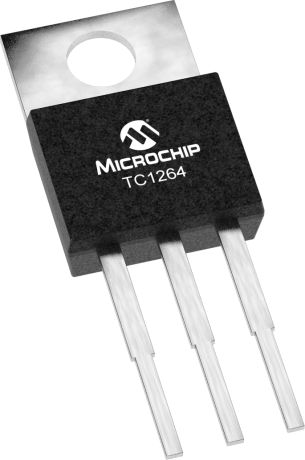

TC1264 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1264’s CMOS construction eliminates wasted ground current, significantly extending battery life. Supply current is typically 80 µA at full load (20 to 60 times lower than in bipolar regulators). TC1264 key features include ultra low noise, very low dropout voltage (typically 450 mV at full load), and fast response to step changes in load. The TC1264 incorporates both over-temperature and over-current protection. The TC1264 is stable with an output capacitor of only 1µF and has a maximum output current of 800 mA. It is available in 3-Pin SOT-223, 3-Pin TO-220 and 3-Pin DDPAK packages.

Additional Features
      • Very Low Dropout Voltage
      • High Output Voltage Accuracy
      • Standard or Custom Output Voltages
      • Over-Current and Over-Temperature Protection
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
800
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
800
VIN Min (V)
2.7
VIN Max (V)
6
VOUT (V)
1.8 2.5 3.0 3.3
Voltage Drop Typ (mV)
450
IGND Typ (µA)
80
Tol Typ %
±0.5
PSRR 1 kHz (dB)
64
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets

06/24/2015
436KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC1264-1.8VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1264-2.5VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1264-3.0VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1264-3.3VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1264-1.8VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1264-2.5VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1264-3.0VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1264-3.3VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1264-3.3VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1264-2.5VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1264-3.0VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1264-1.8VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1264-3.3VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
