TC1262

500mA Fixed Output CMOS LDO

Status: In Production

Features:

  • Very Low Dropout Voltage
  • High Output Voltage Accuracy
  • Standard or Custom Output Voltages
  • Over-Current and Over-Temperature Protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

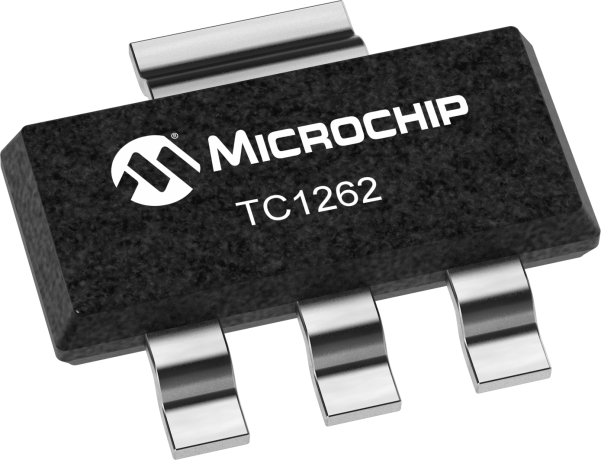

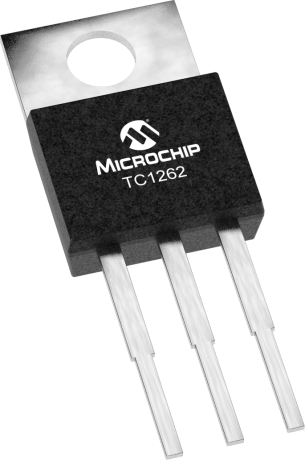

The TC1262 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1262’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 µA at full load (20 to 60 times lower than in bipolar regulators). TC1262 key features include ultra low noise, very low dropout voltage (typically 350 mV at full load), and fast response to step changes in load. The TC1262 incorporates both over-temperature and over-current protection. The TC1262 is stable with an output capacitor of only 1µF and has a maximum output current of 500 mA. It is available in 3-Pin SOT-223, 3-Pin TO-220 and 3-Pin DDPAK packages.

Additional Features
      • Very Low Dropout Voltage
      • High Output Voltage Accuracy
      • Standard or Custom Output Voltages
      • Over-Current and Over-Temperature Protection

Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.7
VIN Max (V)
6
VOUT (V)
2.5 2.8 3.0 3.3 5.0
Voltage Drop Typ (mV)
350
IGND Typ (µA)
80
Tol Typ %
±0.5
PSRR 1 kHz (dB)
64
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets


219KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC1262-2.5VDB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
TC1262-2.5VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-2.8VDB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
TC1262-2.8VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-3.0VDB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
TC1262-3.0VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-3.3VDB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
TC1262-3.3VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-5.0VDB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
TC1262-5.0VDBTR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-3.3VDBMR
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
TC1262-2.5VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1262-2.5VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1262-2.8VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1262-2.8VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1262-3.0VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1262-3.0VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1262-3.3VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1262-3.3VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1262-5.0VEB
1.420000
2.460000
3
DDPAK
-
Matte Tin
e3
TC1262-5.0VEBTR
1.420000
2.072000
3
DDPAK
-
Matte Tin
e3
TC1262-2.5VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1262-3.0VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1262-3.3VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1262-2.8VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
TC1262-5.0VAB
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
