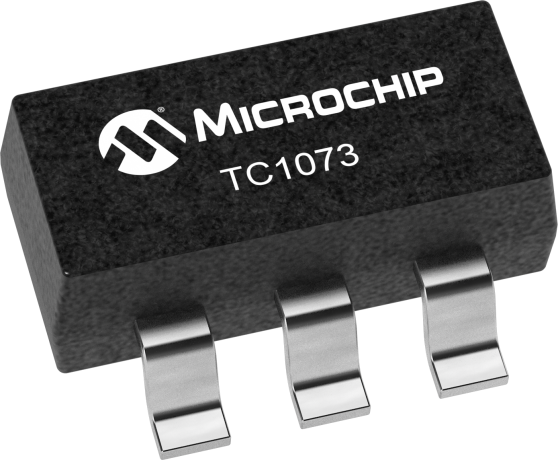

TC1073

100mA CMOS LDO w/ Shutdown, Error Output, and Vref Bypass

Status: In Production

Features:

  • Very Low Ground Current for Longer Battery Life!
  • Very Low Dropout Voltage
  • Choice of 50 mA and 100 mA Output (TC1072, TC1073, Respectively)
  • High Output Voltage Accuracy
  • Standard or Custom Output Voltages
  • Power-Saving Shutdown Mode
  • ERROR Ouput can be Used as a Low Battery
  • Detector, or Processor Reset Generator
  • Bypass Input for Ultra-Quiet Operation
  • Over-Current and Over-Temperature Protection
  • Pin Compatible Upgrades for Bipolar Regulators
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC1072 and TC1073 are high accuracy (typically ±0.5%) CMOS upgrade for older (bipolar) low dropout regulators. Designed specifically for battery-operated systems, the devices’ CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 50µA at full load (20 to 60 times lower than in bipolar regulators). The devices’ key features include ultra low noise operation (plus optional Bypass input); very low dropout voltage (typically 85 mV,TC1072 and 180 mV,TC1073 at full load) and fast response to step changes in load. An error output (ERROR) is asserted when the devices are out-of-regulation (due to a low input voltage or excessive output current). ERROR can be used as a low battery warning or as a processor RESET signal (with the addition of an external RC network). Supply current is reduced to 0.5 µA (max), and both VOUT and ERROR are disabled when the shutdown input is low. The devices incorporate both over-temperature and over-current protection. The TC1072 and TC1073 are stable with an output capacitor of only 1 µF and have a maximum output current of 50 mA. For higher output current versions, please see the TC1185, TC1186, TC1187 (IOUT = 150 mA) and TC1107, TC1108 and TC1173 (IOUT = 300 mA) data sheets.

Additional Features
    • Very Low Ground Current for Longer Battery Life!
    • Very Low Dropout Voltage
    • Choice of 50 mA and 100 mA Output (TC1072, TC1073, Respectively)
    • High Output Voltage Accuracy
    • Standard or Custom Output Voltages
    • Power-Saving Shutdown Mode
    • ERROR Ouput can be Used as a Low Battery
    • Detector, or Processor Reset Generator
    • Bypass Input for Ultra-Quiet Operation
    • Over-Current and Over-Temperature Protection
    • Pin Compatible Upgrades for Bipolar Regulators
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
100
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
100
VIN Min (V)
2.7
VIN Max (V)
6
VOUT (V)
1.8 2.5 2.6 2.7 2.8 2.85 3.0 3.3 3.6 4.0 5.0
Voltage Drop Typ (mV)
180
IGND Typ (µA)
50
Tol Typ %
±0.5
PSRR 1 kHz (dB)
64
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

02/27/2007
713KB

Product Line Card

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
Voltage Supervisor SOT23-5/6 Evaluation Board
Voltage Supervisor SOT23-5/6 Evaluation Board ( VSUPEV2 )

This Blank PCB allows the system designer to quickly evaluate the operation of Microchip Technology’s Voltage Supervisors and Voltage Detectors in the SOT-23-5 (5-pin) and SOT-23-6 (6-pin) packages. This PCB supports many Microchip device families, including the Nonvolitile Digital Potentiometer and PIC10F2xx devices.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC1073-1.8VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-2.5VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-2.6VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-2.7VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-2.85VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-2.8VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-3.0VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-3.3VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-3.6VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-4.0VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1073-5.0VCH713
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
