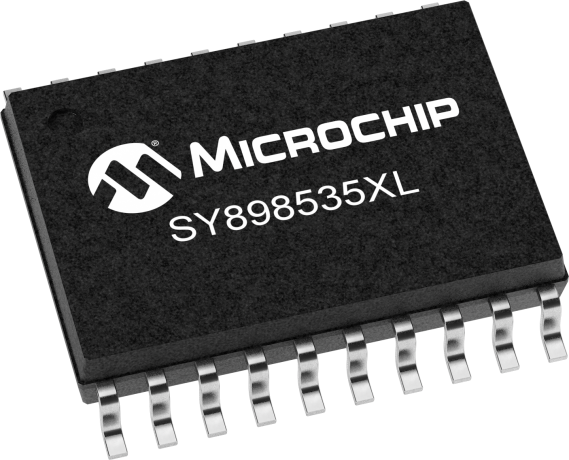

product primary image

SY898535XL

Status: In Production

Features:

  • Provides four differential 3.3V LVPECL copies
  • Selects between single-ended CLK or crystal inputs
  • CLK accepts LVCMOS or LVTTL input levels
  • 235MHz Maximum output frequency
  • <1.65ns Propagation delay (In-to-Q)
  • <30ps Output skew
  • <200ps Part-to-part skew
  • Additive phase jitter, RMS: 0.09ps (typical)
  • 3.3V ±5% supply voltage
  • –40°C to +85°C industrial temperature operating range
  • Available in a 20-pin TSSOP package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY898535XL is a 3.3V, low skew, 1:4 Crystal Oscillator/LVCMOS/LVTTL-to-LVPECL fanout buffer with selectable single ended clock or crystal inputs. The clock input accepts LVCMOS or LVTTL input levels and translate them to 3.3V LVPECL levels. To eliminate runt pulses on the outputs during asynchronous assertion/de-assertion of the clock enable pin, the clock enable is synchronized with the input signal.The SY898535XL operates from a 3.3V ±5% supply and is guaranteed over the full industrial temperature range of –40°C to +85°C. The SY898535XL is part of Micrel’s high-speed, Precision Edge® product line.

Additional Features
    • Provides four differential 3.3V LVPECL copies
    • Selects between single-ended CLK or crystal inputs
    • CLK accepts LVCMOS or LVTTL input levels
    • Guaranteed AC performance over temperature and supply voltage:
      • 235MHz Maximum output frequency
      • <1.65ns Propagation delay (In-to-Q)
      • <30ps Output skew
      • <200ps Part-to-part skew
      • Additive phase jitter, RMS: 0.09ps (typical)
    • 3.3V ±5% supply voltage
    • –40°C to +85°C industrial temperature operating range
    • Available in a 20-pin TSSOP package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
2:4
Input
XTAL/LVCMOS/LVTTL
Output
LVPECL
Supply Voltage
3.3
Max Freq (GHz)
0.24
Max Prop Delay (ps)
1750
Icc (mA)
60
Max Within Device Skew (ps)
30
OE
False
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
LVPECL

Documents

Jump to:

Data Sheet

11/11/2015
266KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY898535XLKY
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
SY898535XLKY-TR
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
