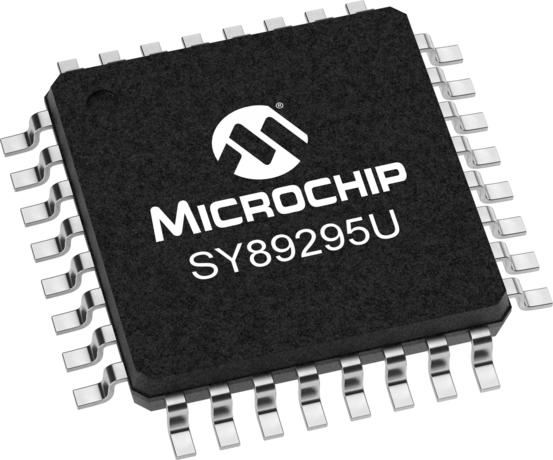

product primary image

SY89295U

Status: In Production

Features:

  • Precision LVPECL programmable delay line
  • >1.5GHz fMAX
  • <160ps rise/fall times
  • <10psPP total jitter
  • <2psRMS cycle-to-cycle jitter
  • <1psRMS random jitter
  • Programmable delay range: 3.2ns to 14.8ns in 10ps increments
  • Increased monotonicity over the MIC100EP195
  • ±10ps INL
  • VBB output reference voltage
  • Parallel inputs accepts LVPECL or CMOS/LVTTL
  • Low voltage operation: 2.5V ±5% and 3.3V ±10%
  • Industrial -40°C to +85°C temperature range
  • Available in 32-pin (5mm x 5mm) MLF® and 32-pin TQFP packages
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89295U is a programmable delay line that delays the input signal using a digital control signal. The delay can vary from 3.2ns to 14.8ns in 10ps increments. In addition, the input signal is LVPECL, uses either a 2.5V ±5% or 3.3V ±10% power supply, and is guaranteed over the full industrial temperature range (-40°C to +85°C).The delay varies in discrete steps based on a control word. The control word is 10-bits long and controls the delay in 10ps increments. The eleventh bit is D[10] and is used to simultaneously cascade the SY89295U which allows for a larger delay range. In addition, the input pins IN and /IN default to an equivalent low state when left floating. Further, for maximum flexibility, the control register interface accepts CMOS or TTL level signals.For applications that require an analog delay input, see the SY89296L which is a programmable delay chip with fine tune control. The SY89295U and SY89296U are part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Precision LVPECL programmable delay line
    • Guaranteed AC performance over temperature and voltage:
      • >1.5GHz fMAX
      • <160ps rise/fall times
    • Low-jitter design:
      • <10psPP total jitter
      • <2psRMS cycle-to-cycle jitter
      • <1psRMS random jitter
    • Programmable delay range: 3.2ns to 14.8ns in 10ps increments
    • Increased monotonicity over the MIC100EP195
    • ±10ps INL
    • VBB output reference voltage
    • Parallel inputs accepts LVPECL or CMOS/LVTTL
    • Low voltage operation: 2.5V ±5% and 3.3V ±10%
    • Industrial -40°C to +85°C temperature range
    • Available in 32-pin (5mm x 5mm) MLF® and 32-pin TQFP packages
Parametrics
Name
Value
Product Type
Skew Management
Description
Programmable Delay.
Input
LVPECL/LVTTL
Output
LVPECL
Supply Voltage
2.5/3.3
Max Freq (GHz)
1.5
Max Prop Delay (ps)
14.8
Icc (mA)
220
Max Within Device Skew (ps)
25
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Delay Resolution ps/step
10
Channels
Single
Output Type
LVPECL
Output Voltage
2.5/3.3V

Documents

Jump to:

Data Sheets


631KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89295UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SY89295UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SY89295UTG-TR
0.132500
0.654600
32
TQFP
7x7x1.0mm
NiPdAu
e4
SY89295UTG
0.132500
0.984400
32
TQFP
7x7x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
