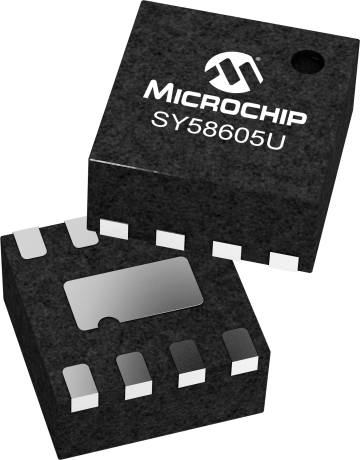

product primary image

SY58605U

Status: In Production

Features:

  • Precision 325mV LVDS buffer
  • DC-to >3.2Gbps throughput
  • <300ps typical propagation delay (IN-to-Q)
  • <100ps rise/fall times
  • Prevents output from oscillating when input is invalid
  • Ultra-low jitter design
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • High-speed LVDS output
  • 2.5V ±5% power supply operation
  • Industrial temperature range: -40°C to +85°C
  • Available in 8-pin (2mm x 2mm) DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY58605U is a 2.5V, high-speed, fully differential LVDS buffer optimized to provide less than 10pspp total jitter. The SY58605U can process clock signals as fast as 2GHz or data patterns up to 3.2Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated voltage reference (VREF-AC) is provided to bias the VT pin. The output is 325mV LVDS, with rise/fall times guaranteed to be less than 100ps.The SY58605U operates from a 2.5V ±5% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require CML or LVPECL outputs, consider Micrel's SY58603U and SY58604U, buffers with 400mV and 800mV output swings respectively. The SY58605U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Precision 325mV LVDS buffer
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >3.2Gbps throughput
      • <300ps typical propagation delay (IN-to-Q)
      • <100ps rise/fall times
    • Fail Safe Input
      • Prevents output from oscillating when input is invalid
    • Ultra-low jitter design
      • <1psRMS cycle-to-cycle jitter
      • <10psPP total jitter
      • <1psRMS random jitter
      • <10psPP deterministic jitter
    • High-speed LVDS output
    • 2.5V ±5% power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 8-pin (2mm x 2mm) DFN package
Parametrics
Name
Value
Product Type
Buffer
Description
Line Driver/Receiver
Input
ANY
Output
LVDS
Supply Voltage
2.5V
Max Freq (GHz)
3.2
Max Data (Gbps)
2
Max Prop Delay (ps)
420
Icc (mA)
50
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVDS

Documents

Jump to:

Data Sheet

04/20/2018
643KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY58605UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
