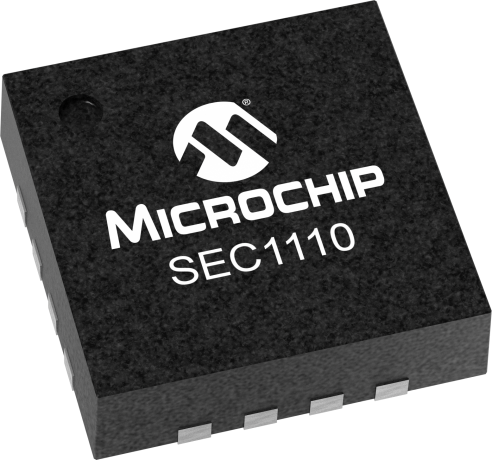

product primary image

SEC1110

Status: In Production

Features:

  • ISO/IEC 7816
  • EMV-certified
  • USB interface
  • Dedicated hardware for performance
  • 8051 controller for flexibility
  • Low standby and dynamic power
  • OTP memory for code and custom configuration data
  • Software development kit (SDK) with full source code
  • Single-chip USB solution
  • Class A/B/C - no external level shifter
  • Integrated oscillator - no external crystal
  • Custom firmware
  • Vendor-specified USB descriptors
  • Unique serial number
  • PC-Link Reader
  • User Authentication
  • Thin/Zero-Client
  • Windows® Smart Card Login
  • Point-of-Sale (POS)
  • Counterfeit Device Detection
  • Network Access Security
  • Software Licensing Keys
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Microchip’s SEC1110 is a low-cost, low-power, single-chip Smart Card controller with a USB 1.1 upstream interfaces. Using a combination of hardware and software, this device delivers high performance and flexible design customization options. The SEC1110 comes in a small-footprint 16-pin QFN and utilizes Microchip’s TrustSpan™ technology which enables digital systems to securely communicate, process, move and store information on system boards, across networks and through the cloud. Up-to-date EMV and USB certifications enhance interoperability with all of the latest and legacy Smart Cards and host operating systems. Ready-to-use USB Chip Card Interface Device (CCID) firmware provides a fast and easy platform to develop custom applications and one-time programmable (OTP) memory offers the flexibility of custom firmware or vendor-specific device data. The OTP memory can be fully or partially programmed by Microchip during chip manufacturing and by the customer during final product assembly.

Additionally, Microchip’s complimentary and confidential USBCheck™ online design review service is available for customers who select the SEC1110 for their application design-in.A 48 pin package is available as a development tool which comes with a SPI-Flash for custom firmware development

Additional Features

    Highlights

    • Single or dual smart card interfaces
      • ISO/IEC 7816
      • EMV-certified
    • USB interface
    • Dedicated hardware for performance
    • 8051 controller for flexibility
    • Low standby and dynamic power
    • OTP memory for code and custom configuration data
    • Software development kit (SDK) with full source code
    • Low BOM cost
      • Single-chip USB solution
      • Class A/B/C - no external level shifter
      • Integrated oscillator - no external crystal
    • Customized during chip manufacturing
      • Custom firmware
      • Vendor-specified USB descriptors
      • Unique serial number

    Target Applications

    • PC-Link Reader
    • User Authentication
    • Thin/Zero-Client
    • Windows® Smart Card Login
    • Point-of-Sale (POS)
    • Counterfeit Device Detection
    • Network Access Security
    • Software Licensing Keys
Parametrics
Name
Value
Description
Smart Card Bridge
Upstream Port
USB 2.0
Downstream Ports
USB 2.0
USB Speed
Full Speed
Max Speed (MHz)
16
Tx Buffer Size (bytes)
512
Rx Buffer Size (bytes)
512
GPIOs
3
Smart Card
1
Temp. Range Min.
-40
Temp. Range Max.
85
Op Voltage (V)
3.3

Documents

Jump to:

Brochures

08/23/2013
817KB

Certifications

02/22/2014
1382KB
02/22/2014
16KB
02/22/2014
28B

User Guides

Product Selector Tools

03/07/2014
11KB

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
SEC1212 Smart Card Bridge to USB and UART Customer Evaluation Board
SEC1212 Smart Card Bridge to USB and UART Customer Evaluation Board ( EVB-SEC1212-DEV )

The EVB-SEC1212-DEV is a development tool for development of custom firmware for the SEC1110 and SEC1210. The development platform supports an external SPI Flash device for enabling custom firmware code to be loaded into the SEC device on bootup. The SPI Flash programming tool is included in the development package.

Learn More
Add To Cart
SEC1110 Smart Card Bridge to USB Customer Evaluation Board
SEC1110 Smart Card Bridge to USB Customer Evaluation Board ( EVB-SEC1110 )

The SEC1110 is a low-cost, low-power, single port Smart Card controllers with USB interface. Using a combination of hardware and software, these devices deliver high-performance and flexible design customization options. The SEC1110 utilize SMSCs TrustSpan technology which enables digital systems to securely communicate, process, move and store information on system boards, across networks and...

Learn More
Add To Cart
Software Libraries
Binary files for SEC1110 OTP programming

Learn More
Binary files for SEC1212 OTP programming

Learn More
EMV Loopback Application for Linux - SEC1110,SEC1210,SEC1212

Learn More
EMV Loopback Application for Windows - SEC1110,SEC1210,SEC1212

Learn More
EVB-SEC1212-DEV Driver for BootROM enumeration

Learn More
USB:Linux Libraries required for SEC1110/1210 USB CCID reader

Linux libraries required for Linux

Learn More
Utility for programming the OTP of SEC1110,SEC1210 and SEC1212 DEV board

Learn More
Utility for programming the SPI Flash of the DEV board EVB-SEC1212-DEV

Learn More

Similar Devices

Product
Upstream Port
USB Speed
MGMT I/F
Price 5K
USB 2.0
Full Speed
None
$1.24
USB 2.0
Full Speed
SPI
$1.35
