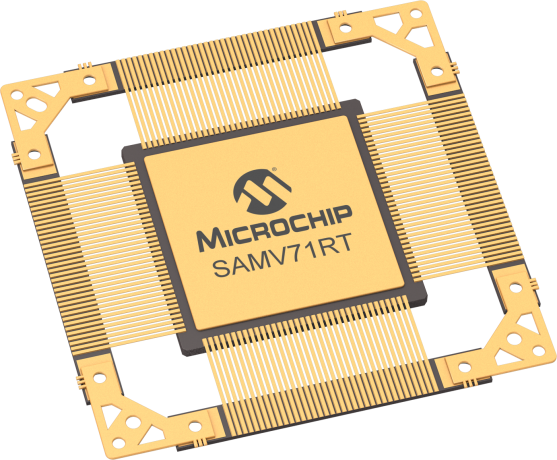

SAMV71Q21RT

Status: In Production

Features:

  • ARM® Cortex®-M7 running up to 300MHz
  • 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
  • Single- and double-precision HW Floating Point Unit (FPU)
  • Memory Protection Unit (MPU) with 16 zones
  • DSP Instructions, Thumb®-2 Instruction Set
  • Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAMV71Q21RT is the radiation tolerant version of the popular Microchip SAMV71Q21 based on the high-performance 32-bit ARM Cortex-M7 processor with a Double Precision Floating Point Unit (FPU). These devices operate at up to 300MHz and feature up to 2048 Kbytes of Flash, and up to 384 Kbytes of multi-port SRAM which is configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core.
The SAM V71 series includes a 10/100 Ethernet MAC w/IEEE1588, HS USB Interface with integrated PHY, dual CAN-FD, QSPI, MediaLB, CMOS Imager interface, TDM/I2S (SSC).
This space-qualified version of the product adds:  Ceramic & Hermetic packages, extended temperature range -55C to 125C, extended qualification flow equivalent to QML-V or QML-Q space grade.  Radiation performance for the SAMV71Q21RT:  SEL LET > 60 MeV.cm2/mg (at 125C), and TID up to 30 Krad (Si).

Additional Features
  • Core
    • ARM® Cortex®-M7 running up to 300MHz
    • 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
    • Single- and double-precision HW Floating Point Unit (FPU)
    • Memory Protection Unit (MPU) with 16 zones
    • DSP Instructions, Thumb®-2 Instruction Set
    • Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
  • Memories
    • 2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data
    • 384 Kbytes embedded Multi-port SRAM
    • Tightly Coupled Memory (TCM) interface with four configurations (disabled, 2 x 32 Kbytes, 2 x 64 Kbytes, 2 x 128 Kbytes)
    • 16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines
    • 16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling
    • 16-bit SDRAM Controller (SDRAMC) interfacing up to 256 MB and with on-the-fly scrambling
  • System
    • Embedded voltage regulator for single-supply operation
    • Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation
    • Quartz or ceramic resonator oscillators: 3 to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock
    • RTC with Gregorian calendar mode, waveform generation in low-power modes
    • RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations
    • 32-bit low-power Real-time Timer (RTT)
    • High-precision Main RC oscillator with 12 MHz default frequency for device startup. In-application trimming access for frequency adjustment. 8/12 MHz are factory-trimmed.
    • 32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)
    • One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations
    • Temperature Sensor
    • One dual-port 24-channel central DMA Controller (XDMAC)
  • Low-Power Features
    • Low-power Sleep, Wait and Backup modes, with typical power consumption down to 1.1 μA in Backup mode with RTC, RTT and wakeup logic enabled
    • Ultra-low-power RTC and RTT
    • 1 Kbyte of backup RAM (BRAM) with dedicated regulator
  • Peripherals
    • One Ethernet MAC (GMAC) 10/100 Mbps in MII mode and RMII with dedicated DMA. IEEE1588 PTP frames and 802.3az Energy-efficiency support. Ethernet AVB support with IEEE802.1AS Timestamping and IEEE802.1Qav credit-based traffic-shaping hardware support
    • 12-bit ITU-R BT. 601/656 Image Sensor Interface (ISI)
    • Two master Controller Area Networks (MCAN) with Flexible Data Rate (CAN-FD) with SRAM-based mailboxes, time- and event-triggered transmission
    • MediaLB® device with 3-wire mode, up to 1024 x Fs speed, supporting MOST25 and MOST50 networks
    • Three USARTs. USART0/1/2 support LIN mode, ISO7816, IrDA®, RS-485, SPI, Manchester and Modem modes; USART1 supports LON mode.
    • Five 2-wire UARTs with SleepWalking™ support
    • Three Two-Wire Interfaces (TWIHS) (I2C-compatible) with SleepWalking™ support
    • Quad I/O Serial Peripheral Interface (QSPI) interfacing up to 256 MB Flash and with eXecute-In-Place and on-the-fly scrambling
    • Two Serial Peripheral Interfaces (SPI)
    • One Serial Synchronous Controller (SSC) with I2S and TDM support
    • Two Inter-IC Sound Controllers (I2SC)
    • One High-speed Multimedia Card Interface (HSMCI) (SDIO/SD Card/e.MMC)
    • Four Three-Channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes, constant on time. Quadrature decoder logic and 2-bit Gray Up/Down Counter for stepper motor
    • Two 4-channel 16-bit PWMs with complementary outputs, Dead Time Generator and eight fault inputs per PWM for motor control, two external triggers to manage power factor correction (PFC), DC-DC and lighting control.
    • Two Analog Front-End Controllers (AFEC), each supporting up to 12 channels with differential input mode and programmable gain stage, allowing dual sample-and-hold at up to 1.7 Msps. Offset and gain error correction feature.
    • One 2-channel 12-bit 1 Msps-per-channel Digital-to-Analog Controller (DAC) with Differential and Over Sampling modes
    • One Analog Comparator Controller (ACC) with flexible input selection, selectable input hysteresis
  • I/O
    • Up to 114 I/O lines with external interrupt capability (edge- or level-sensitivity), debouncing, glitch filtering and On-die Series Resistor Termination
    • Five Parallel Input/output Controllers (PIO)
  • Voltage
    • Single supply voltage from 3.0V to 3.6V
  • Radiation Performances
    • No Single Event Latch-up Below an LET Threshold of 60 MeV.cm2 /mg @125°C
    • Total Ionizing Dose of 30 krad(Si)
  • Packages

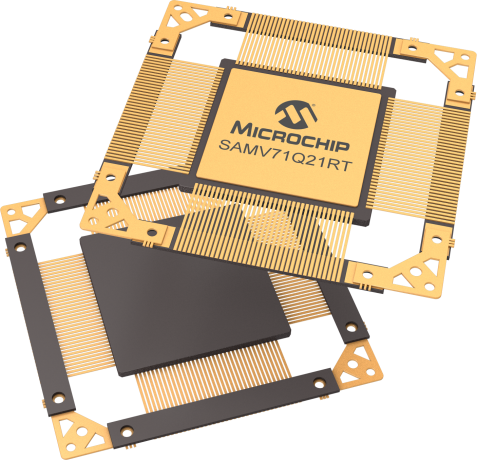

    • CQFP144, 144-lead CQFP, 22 x 22mm, pitch 0.5 mm
    • LQFP144, 144-lead LQFP, 20 x 20mm, pitch 0.5 mm
Parametrics
Name
Value
SPI
2
CPU
Rad Tol 32-bit ARM
External Bus Interface
2
Max I/O Pins
114
I/O Supply Class Max
3.6
I2C
2
I/O Supply Class Min
3
Debug Interface
SWD
Output Compare Channels
2
Temp# Range Range (deg C)
-55 to 125
Flash (kBytes)
2048
Self Program Memory
Yes
Analog Comparators
4
UART
5
Ext Interrupts
114
Input Capture Channels
4
PWM Channels
2
RTC
Counter
SRAM (kBytes)
384
Timers
4
Max# Operating Freq# (MHz)
300
MPU / MMU
yes / no
Pin Count
144
ADC Speed (ksps)
1700
Watchdog
Yes
ADC Resolution (bits)
12
32kHz RTC
Yes
Calibrated RC Oscillator
Yes
CAN
Yes
LIN
Yes
