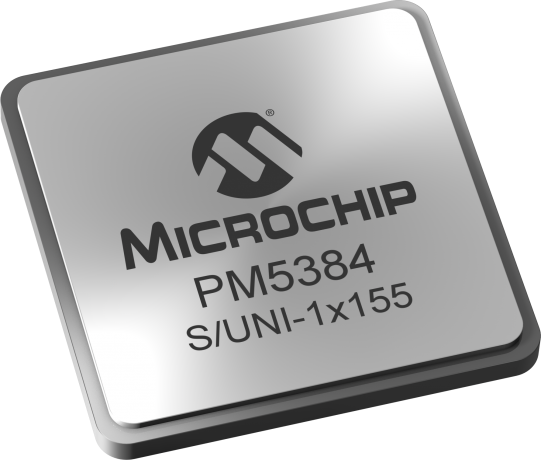

product primary image

PM5384

S/UNI-1x155 ATM & Packet over SONET/SDH PHY

Status: In Production

Features:

  • Single chip ATM and Packet over SONET/SDH Physical Layer Device operating at 155.52 Mbit/s
  • Implements the ATM Forum User Network Interface (UNI) and the ATM physical layer for Broadband ISDN according to ITU Recommendation I.432
  • Implements Point-to-Point Protocol (PPP) over SONET/SDH according to RFC 2615
  • Processes duplex bit-serial 155.52 Mbit/s STS-3c/STM-1 data streams with on-chip clock and data recovery and clock synthesis
  • Complies with Bellcore GR-253-CORE (2000 Issue) jitter tolerance, jitter transfer (1995 issue), and intrinsic jitter criteria. Provides control circuitry required to comply with Bellcore GR-253-CORE WAN clocking requirements related to wander transfer, holdover, and longterm stability when using an external VCXO
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PM5384 S/UNI-1x155 is a single-chip ATM and Packet over SONET/SDH PHY solution.

Applications
• Routers and Layer 3 Switches
• 3G Wireless Base Station Controllers
• DSLAM Uplinks
• WAN and Edge ATM switches
• LAN switches and hubs
• Packet switches and hubs
• Network Interface Cards and Uplinks

Additional Features
  • Single chip ATM and Packet over SONET/SDH Physical Layer Device operating at 155.52 Mbit/s
  • Implements the ATM Forum User Network Interface (UNI) and the ATM physical layer for Broadband ISDN according to ITU Recommendation I.432
  • Implements Point-to-Point Protocol (PPP) over SONET/SDH according to RFC 2615
  • Processes duplex bit-serial 155.52 Mbit/s STS-3c/STM-1 data streams with on-chip clock and data recovery and clock synthesis
  • Complies with Bellcore GR-253-CORE (2000 Issue) jitter tolerance, jitter transfer (1995 issue), and intrinsic jitter criteria. Provides control circuitry required to comply with Bellcore GR-253-CORE WAN clocking requirements related to wander transfer, holdover, and longterm stability when using an external VCXO
  • Provides a UTOPIA Level 2, 8-bit wide system interface (clocked up to 52 MHz) with parity support for ATM applications
  • Provides a UTOPIA Level 2, 16-bit wide system interface (clocked up to 52 MHz) with parity support for ATM applications
  • Provides a SATURN POS-PHY Level 2, 16-bit system interface (clocked up to 52 MHz) for Packet over SONET/SDH (POS) applications (similar to UTOPIA Level 2, but adapted for packet transfer)
  • Provides support functions for 1+1 APS operation
  • Provides a standard 5-signal IEEE 1149.1 JTAG test port for boundary scan board test purposes.
  • Provides a generic 8-bit microprocessor bus interface for configuration, control, and status monitoring
  • Low power 2.5/3.3 V CMOS with 5 V TTL-compatible digital inputs/outputs (PECL inputs/outputs are 3.3 V and 5 V compatible)
  • Industrial temperature range (-40°C to +85°C)
  • 15 mm x15 mm 196-pin stPBGA package with 1 mm ball pitch

Documents

Jump to:

Data Sheets

Brochures


44KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PM5384-NI
0.000000
1.428571
196
LFBGA
15x15mm
SnPb
e0
PM5384-NGI
0.000000
1.436508
196
LBGA
15x15x1.5mm
SAC405
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
