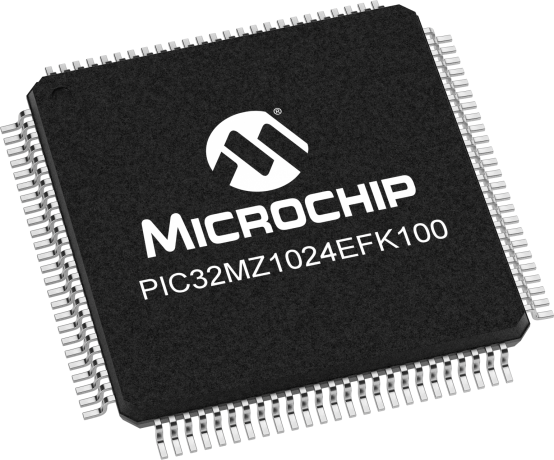

PIC32MZ1024EFK100

Status: In Production

Features:

  • 200 MHz/330 DMIPS, MIPS M-class core
  • Four 64-bit accumulators
  • Single-cycle MAC, saturating and fractional math
  • IEEE 754-compliant
  • Dual Panel Flash for live update support
  • FPU for fast single
  • and double-precision math
  • 12-bit, 18 MSPS, 40-channel ADC module
  • Memory Management Unit for optimum embedded OS execution
  • microMIPS mode for up to 35% code compression
  • CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
  • SPI/I2S interfaces for audio processing and playback
  • Hi-Speed USB 2.0 Device/Host/OTG
  • 10/100 Mbps Ethernet MAC with MII and RMII interface
  • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
  • Temperature Range:
  • 40°C to 85°C;
  • 40°C to 125°C
  • Grade 1
  • 40°C to 125°C
  • Operating voltage range of 2.2V to 3.6V
  • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
  • 256KB SRAM memory
  • microMIPS mode for up to 35% smaller code size
  • Four 64-bit accumulators
  • Single-cylce MAC, saturating and fractional math
  • IEEE 754-compliant
  • FPU for fast single
  • and double-precision math
  • Code-efficient (C and Assembly) architecture
  • Low-power management modes (Idle and Sleep)
  • 50 MHz External Bus Interface (EBI)
  • 50 MHz Serial Quad Interface (SQI)
  • Peripheral Pin Select (PPS) functionality to enable function remap
  • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
  • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
  • Two CAN modules 2.0B Active with DeviceNet addressing support
  • Six 4-wire SPI modules (50 Mbps)
  • SQI configurable as an additional SPI module (50 MHz)
  • Five I2C modules (up to 1 Mbaud) with SMBus support
  • Parallel Master Port (PMP)
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
  • Nine Capture inputs and Nine Compare/PWM outputs
  • Graphics interface: EBI or PMP
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Audio data master clock: Fractional clock frequencies with USB synchronization
  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
  • Up to 40 analog inputs
  • Can operate during sleep and idle modes
  • Multiple trigger sources
  • Six digital comparators and six digital filters
  • Two analog comparators with 32 programmable voltage references
  • Temperature sensor with ±2°C accuracy
  • In-circuit and in-application programming
  • 4-wire MIPS® Enhanced JTAG interface
  • Unlimited program and 12 complex data breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
  • Non-intrusive hardware-based instruction trace
  • MPLAB Harmony
  •  PIC32 software development framework
  • C/C++ compiler with native DSP/fractional and FPU support
  • TCP/IP, USB, Graphics and mTouch middleware
  • MFi, Android and Bluetooth audio frameworks
  • RTOS Kernels, Express Logic, ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary



Additional Features
      Key Features
      • 200 MHz/330 DMIPS, MIPS M-class core
      • DSP-enhanced core:
        • Four 64-bit accumulators
        • Single-cycle MAC, saturating and fractional math
        • IEEE 754-compliant
        • Dual Panel Flash for live update support
        • FPU for fast single- and double-precision math
        • 12-bit, 18 MSPS, 40-channel ADC module
        • Memory Management Unit for optimum embedded OS execution
        • microMIPS mode for up to 35% code compression
        • CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
        • SPI/I2S interfaces for audio processing and playback
        • Hi-Speed USB 2.0 Device/Host/OTG
        • 10/100 Mbps Ethernet MAC with MII and RMII interface
        • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
        • Temperature Range: - 40°C to 85°C; - 40°C to 125°C
          • AEC-Q100 Qualified
            • Grade 1
            • - 40°C to 125°C
          Microcontroller Features
          • Operating voltage range of 2.2V to 3.6V
          • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
          • 256KB SRAM memory
          • microMIPS mode for up to 35% smaller code size
          • DSP-enhanced core:
            • Four 64-bit accumulators
            • Single-cylce MAC, saturating and fractional math
            • IEEE 754-compliant
          • FPU for fast single- and double-precision math
          • Code-efficient (C and Assembly) architecture
          • Low-power management modes (Idle and Sleep)
            Peripheral Features
            • 50 MHz External Bus Interface (EBI)
            • 50 MHz Serial Quad Interface (SQI)
            • Peripheral Pin Select (PPS) functionality to enable function remap
            • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
            • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
              • Two CAN modules 2.0B Active with DeviceNet addressing support
              • Six 4-wire SPI modules (50 Mbps)
              • SQI configurable as an additional SPI module (50 MHz)
              • Five I2C modules (up to 1 Mbaud) with SMBus support
              • Parallel Master Port (PMP)
                • Hardware Real-Time Clock and Calendar (RTCC)
                • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
                • Nine Capture inputs and Nine Compare/PWM outputs
                  Audio/Graphics/Touch HMI Features
                  • Graphics interface: EBI or PMP
                  • Audio data communication: I2S, LJ, RJ, USB
                  • Audio data control interface: SPI and I2C™
                  • Audio data master clock: Fractional clock frequencies with USB synchronization
                    Advanced Analog Features
                    • 12-bit ADC Module:
                      • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
                      • Up to 40 analog inputs
                      • Can operate during sleep and idle modes
                      • Multiple trigger sources
                      • Six digital comparators and six digital filters
                      • Two analog comparators with 32 programmable voltage references
                      • Temperature sensor with ±2°C accuracy
                        Debugger Development Support
                        • In-circuit and in-application programming
                        • 4-wire MIPS® Enhanced JTAG interface
                        • Unlimited program and 12 complex data breakpoints
                        • IEEE 1149.2-compatible (JTAG) boundary scan
                        • Non-intrusive hardware-based instruction trace
                        Integrated Software Libraries and Tools
                        • MPLAB Harmony -  PIC32 software development framework
                        • C/C++ compiler with native DSP/fractional and FPU support
                        • TCP/IP, USB, Graphics and mTouch middleware
                        • MFi, Android and Bluetooth audio frameworks
                        • RTOS Kernels, Express Logic, ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
                      Parametrics
                      Name
                      Value
                      Part Family
                      PIC32MZEF
                      Max CPU Speed MHz
                      200
                      Program Memory Size (KB)
                      1024
                      SRAM (KB)
                      256
                      Auxiliary Flash (KB)
                      160
                      Crypto Engine
                      Yes
                      Temperature Range (C)
                      -40 to 125
                      Operating Voltage Range (V)
                      2.2 to 3.6
                      Direct Memory Access Channels
                      8
                      SPI
                      6
                      I2C
                      5
                      CODEC Interface (I2S,AC97)
                      Yes
                      Peripheral Pin Select / Pin Muxing
                      Yes
                      Ethernet
                      10/100 Base-TX Mac
                      Number of Ethernet Ports
                      1
                      Number of USB Modules
                      1
                      Number of CAN modules
                      2
                      Type of CAN module
                      CAN
                      ADC Input
                      40
                      Max ADC Resolution (Bits)
                      12
                      Max ADC Sampling Rate (ksps)
                      18000
                      Input Capture
                      9
                      Standalone Output Compare/Standard PWM
                      9
                      Max 16-bit Digital Timers
                      9
                      Parallel Port
                      PMP
                      Number of Comparators
                      2
                      Internal Oscillator
                      8 MHz, 32 kHz
                      Hardware RTCC/RTC
                      Yes
                      Max I/O Pins
                      78
                      Pincount
                      100
                      Serial Quad Interface
                      Yes
