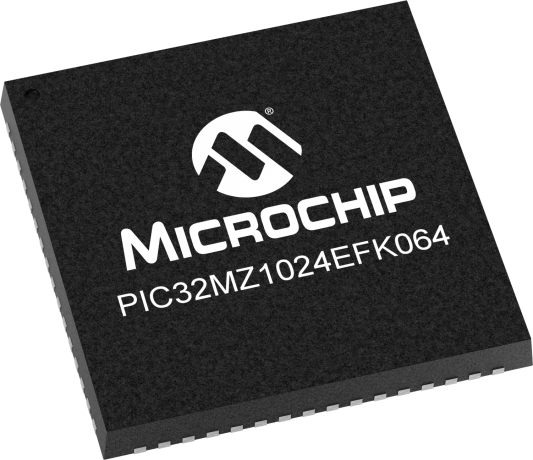

PIC32MZ1024EFK064

Status: In Production

Features:

  • 200 MHz/330 DMIPS, MIPS Warrior M-class core
  • Four 64-bit accumulators
  • Single-cycle MAC, saturating and fractional math
  • IEEE 754-compliant
  • Dual Panel Flash for live update support
  • FPU for fast single
  • and double-precision math
  • 12-bit, 18 MSPS, 24-channel ADC module
  • Memory Management Unit for optimum embedded OS execution
  • microMIPS mode for up to 35% code compression
  • CAN, UART, I2C, PMP, SQI & Analog Comparators
  • SPI/I2S interfaces for audio processing and playback
  • Hi-Speed USB 2.0 Device/Host/OTG
  • 10/100 Mbps Ethernet MAC with MII and RMII interface
  • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
  • Temperature Range:
  • 40°C to 85°C;
  • 40°C to 125°C
  • Grade 1
  • 40°C to 125°C
  • Operating voltage range of 2.2V to 3.6V
  • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
  • 256KB SRAM memory
  • microMIPS mode for up to 35% smaller code size
  • Four 64-bit accumulators
  • Single-cylce MAC, saturating and fractional math
  • IEEE 754-compliant
  • FPU for fast single
  • and double-precision math
  • Code-efficient (C and Assembly) architecture
  • Low-power management modes (Idle and Sleep)
  • 50 MHz Serial Quad Interface (SQI)
  • Peripheral Pin Select (PPS) functionality to enable function remap
  • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
  • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
  • Two CAN modules 2.0B Active with DeviceNet addressing support
  • Four 4-wire SPI modules (50 Mbps)
  • SQI configurable as an additional SPI module (50 MHz)
  • Four I2C modules (up to 1 Mbaud) with SMBus support
  • Parallel Master Port (PMP)
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
  • Nine Capture inputs and Nine Compare/PWM outputs
  • Graphics interface: PMP
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Audio data master clock: Fractional clock frequencies with USB synchronization
  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
  • Up to 24 analog inputs
  • Can operate during sleep and idle modes
  • Multiple trigger sources
  • Six digital comparators and six digital filters
  • Two analog comparators with 32 programmable voltage references
  • Temperature sensor with ±2°C accuracy
  • In-circuit and in-application programming
  • 4-wire MIPS® Enhanced JTAG interface
  • Unlimited program and 12 complex data breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
  • Non-intrusive hardware-based instruction trace
  • MPLAB Harmony
  • PIC32 software development framework
  • C/C++ compiler with native DSP/fractional and FPU support
  • TCP/IP, USB, Graphics and mTouch middleware
  • MFi, Android and Bluetooth audio frameworks
  • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary




Additional Features
      Key Features
      • 200 MHz/330 DMIPS, MIPS Warrior M-class core
      • DSP-enhanced core:
        • Four 64-bit accumulators
        • Single-cycle MAC, saturating and fractional math
        • IEEE 754-compliant
        • Dual Panel Flash for live update support
        • FPU for fast single- and double-precision math
        • 12-bit, 18 MSPS, 24-channel ADC module
        • Memory Management Unit for optimum embedded OS execution
        • microMIPS mode for up to 35% code compression
        • CAN, UART, I2C, PMP, SQI & Analog Comparators
        • SPI/I2S interfaces for audio processing and playback
        • Hi-Speed USB 2.0 Device/Host/OTG
        • 10/100 Mbps Ethernet MAC with MII and RMII interface
        • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
        • Temperature Range: - 40°C to 85°C; - 40°C to 125°C
          • AEC-Q100 Qualified
            • Grade 1
            • - 40°C to 125°C
          Microcontroller Features
          • Operating voltage range of 2.2V to 3.6V
          • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
          • 256KB SRAM memory
          • microMIPS mode for up to 35% smaller code size
          • DSP-enhanced core:
            • Four 64-bit accumulators
            • Single-cylce MAC, saturating and fractional math
            • IEEE 754-compliant
          • FPU for fast single- and double-precision math
          • Code-efficient (C and Assembly) architecture
          • Low-power management modes (Idle and Sleep)
            Peripheral Features
            • 50 MHz Serial Quad Interface (SQI)
            • Peripheral Pin Select (PPS) functionality to enable function remap
            • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
            • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
            • Two CAN modules 2.0B Active with DeviceNet addressing support
            • Four 4-wire SPI modules (50 Mbps)
            • SQI configurable as an additional SPI module (50 MHz)
            • Four I2C modules (up to 1 Mbaud) with SMBus support
            • Parallel Master Port (PMP)
            • Hardware Real-Time Clock and Calendar (RTCC)
            • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
            • Nine Capture inputs and Nine Compare/PWM outputs
              Audio/Graphics/Touch HMI Features
              • Graphics interface: PMP
              • Audio data communication: I2S, LJ, RJ, USB
              • Audio data control interface: SPI and I2C™
              • Audio data master clock: Fractional clock frequencies with USB synchronization
                Advanced Analog Features
                • 12-bit ADC Module:
                  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
                  • Up to 24 analog inputs
                  • Can operate during sleep and idle modes
                  • Multiple trigger sources
                  • Six digital comparators and six digital filters
                • Two analog comparators with 32 programmable voltage references
                • Temperature sensor with ±2°C accuracy
                  Debugger Development Support
                  • In-circuit and in-application programming
                  • 4-wire MIPS® Enhanced JTAG interface
                  • Unlimited program and 12 complex data breakpoints
                  • IEEE 1149.2-compatible (JTAG) boundary scan
                  • Non-intrusive hardware-based instruction trace
                  Integrated Software Libraries and Tools
                  • MPLAB Harmony - PIC32 software development framework
                  • C/C++ compiler with native DSP/fractional and FPU support
                  • TCP/IP, USB, Graphics and mTouch middleware
                  • MFi, Android and Bluetooth audio frameworks
                  • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
              Parametrics
              Name
              Value
              Part Family
              PIC32MZEF
              Max CPU Speed MHz
              200
              Program Memory Size (KB)
              1024
              SRAM (KB)
              256
              Auxiliary Flash (KB)
              160
              Crypto Engine
              Yes
              Temperature Range (C)
              -40 to 125
              Operating Voltage Range (V)
              2.2 to 3.6
              Direct Memory Access Channels
              8
              SPI
              4
              I2C
              4
              CODEC Interface (I2S,AC97)
              Yes
              Peripheral Pin Select / Pin Muxing
              Yes
              Ethernet
              10/100 Base-TX Mac
              Number of Ethernet Ports
              1
              Number of USB Modules
              1
              Number of CAN modules
              2
              Type of CAN module
              CAN
              ADC Input
              24
              Max ADC Resolution (Bits)
              12
              Max ADC Sampling Rate (ksps)
              18000
              Input Capture
              9
              Standalone Output Compare/Standard PWM
              9
              Max 16-bit Digital Timers
              9
              Parallel Port
              PMP
              Number of Comparators
              2
              Internal Oscillator
              8 MHz, 32 kHz
              Hardware RTCC/RTC
              Yes
              Max I/O Pins
              53
              Pincount
              64
              Serial Quad Interface
              Yes
