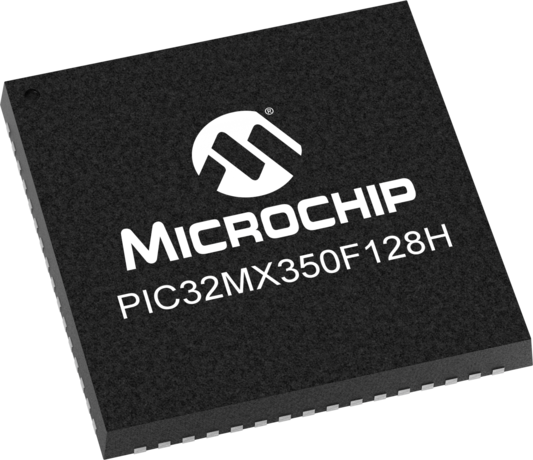

product primary image

PIC32MX350F128H

Status: In Production

Features:

  • 100 MHz/131 DMIPS, MIPS32® M4K® core
  • Two I2S/SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) for graphics interfaces
  • Charge Time Measurement Unit (CTMU)
  • Temperature Range - 40°C to 105°C
  • Operating voltage range of 2.3V to 3.6V
  • 128KB Flash memory (plus an additional 12 KB of Boot Flash)
  • 32KB SRAM memory
  • MIPS16e® mode for up to 40% smaller code size
  • Pin-compatible with most Microchip 16-bit devices
  • Low-power management modes (Idle and Sleep)
  • Peripheral Pin Select (PPS) functionality
  • Up to 4 channels of hardware DMA with automatic data size detection
  • Four UARTs and two I2C™ modules
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
  • Five Capture inputs and Five Compare/PWM outputs
  • External graphics interface with up to 34 PMP pins
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Generation of fractional clock frequencies
  • Can be synchronized with USB clock
  • Can be tuned in run-time
  • Supports mTouch™ capacitive touch sensing
  • Provides high-resolution time measurement (1 ns)
  • On-chip temperature measurement capability
  • 10-bit 1Msps rate with one Sample and Hold (S&H)
  • Up to 28 analog inputs
  • Can operate during sleep mode
  • Two dual-input Comparator modules
  • Programmable references with 32 voltage points
  • In-circuit and in-application programming
  • 4-wire MIPS® Enhanced JTAG interface
  • Unlimited program and six complex data breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary



Additional Features

      Key Features

      • 100 MHz/131 DMIPS, MIPS32® M4K® core
      • Two I2S/SPI modules for Codec and serial communications
      • Peripheral Pin Select (PPS) functionality
      • Parallel Master Port (PMP) for graphics interfaces
      • Charge Time Measurement Unit (CTMU)
      • Temperature Range - 40°C to 105°C

        Microcontroller Features

        • Operating voltage range of 2.3V to 3.6V
        • 128KB Flash memory (plus an additional 12 KB of Boot Flash)
        • 32KB SRAM memory
        • MIPS16e® mode for up to 40% smaller code size
        • Pin-compatible with most Microchip 16-bit devices
        • Low-power management modes (Idle and Sleep)

          Peripheral Features

          • Peripheral Pin Select (PPS) functionality
          • Up to 4 channels of hardware DMA with automatic data size detection
          • Four UARTs and two I2C™ modules
          • Hardware Real-Time Clock and Calendar (RTCC)
          • Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
          • Five Capture inputs and Five Compare/PWM outputs

            Audio/Graphics/Touch HMI Features

            • External graphics interface with up to 34 PMP pins
            • Audio data communication: I2S, LJ, RJ, USB
            • Audio data control interface: SPI and I2C™
            • Audio data master clock:
              • Generation of fractional clock frequencies
              • Can be synchronized with USB clock
              • Can be tuned in run-time
            • Charge Time Measurement Unit (CTMU):
              • Supports mTouch™ capacitive touch sensing
              • Provides high-resolution time measurement (1 ns)
              • On-chip temperature measurement capability

              Advanced Analog Features

              • ADC Module:
                • 10-bit 1Msps rate with one Sample and Hold (S&H)
                • Up to 28 analog inputs
                • Can operate during sleep mode
              • Comparators:
                • Two dual-input Comparator modules
                • Programmable references with 32 voltage points

                Debugger Development Support

                • In-circuit and in-application programming
                • 4-wire MIPS® Enhanced JTAG interface
                • Unlimited program and six complex data breakpoints
                • IEEE 1149.2-compatible (JTAG) boundary scan
              Parametrics
              Name
              Value
              Part Family
              PIC32MX3xx
              Max CPU Speed MHz
              100
              Program Memory Size (KB)
              128
              SRAM (KB)
              32
              Auxiliary Flash (KB)
              12
              Temperature Range (C)
              -40 to 105
              Operating Voltage Range (V)
              2.3 to 3.6
              Direct Memory Access Channels
              4
              SPI
              2
              I2C
              2
              CODEC Interface (I2S,AC97)
              Yes
              Peripheral Pin Select / Pin Muxing
              Yes
              CTMU test
              Yes
              ADC Input
              28
              Max ADC Resolution (Bits)
              10
              Max ADC Sampling Rate (ksps)
              1000
              Input Capture
              5
              Standalone Output Compare/Standard PWM
              5
              Max 16-bit Digital Timers
              5
              Parallel Port
              PMP
              Number of Comparators
              2
              Internal Oscillator
              8 MHz, 32 kHz
              Hardware RTCC/RTC
              Yes
              Max I/O Pins
              53
              Pincount
              64
