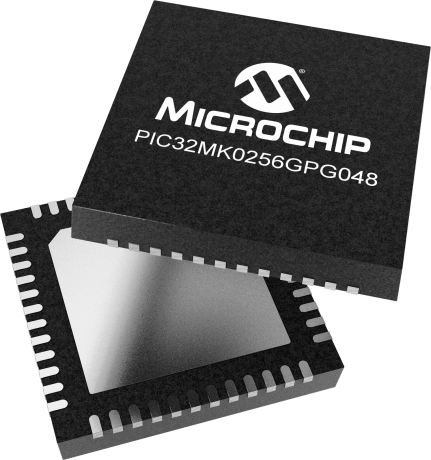

PIC32MK0256GPG048

High Performance 32-bit MCU with DSP and FPU

Status: In Production

Features:

  • 120Mhz MIPS32 microAptiv MCU Core
  • 256KB With Error Correcting Code support
  • 7x 12-bit 3.75MSPS ADC Cores up to 18 analog inputs
  • 2 I2C ports
  • 2 UART Modules (up to 25Mbps) with LIN and IrDA support
  • 2 SPI/I2S modules
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

PIC32MK family devices combine 32-Bit, 120Mhz performance with up to 1MB of ECC protected Flash memory, and a rich peripheral set targeting applications such as motor control, industrial control and Industrial Internet of Things (IIoT) and CAN and CAN-FD applications.

These devices feature 7x 12-Bit ADC's each operating at up to 3.75MSPS, which can be combined and sequenced to provide up to 25.4MSPS sampling rates! In addition, multiple OpAmps. comparators and DAC's are included as well.

Analog simulation models are now available in the MPLAB Mindi Simulation Environment

Application software examples and driver libraries are included as part of the MPLAB Harmony V3 Framework

Additional Features
  • 120Mhz MIPS32 microAptiv MCU Core
    • Floating Point Unit for single and double precision math
    • MicroMIPS Mode for 40% smaller code size
    • Four 64-bit Accumulators
    • Single Cycle MAC supporting saturating and fractional math
  • Memories
    • 256KB With Error Correcting Code support
    • 64KB SRAM
  • Advanced Analog Features
    • 7x 12-bit 3.75MSPS ADC Cores up to 18 analog inputs
    • - Sum of all individual ADC's combined, 25 Msps in 12-bit mode or 33.7 Msps in 8-bit mode
    • Four 100Mhz Op amps
    • Five analog comparators
    • 2x 12-bit DACs
  • Advanced Timers
    • Up to 9 16-bit or one 16-bit and eight 32-bit timer/counters
    • 9 Output Compare
    • 9 Input Capture
  • Communications Interfaces
    • 2 I2C ports
    • 2 UART Modules (up to 25Mbps) with LIN and IrDA support
    • 2 SPI/I2S modules
    • Peripheral Pin Select (PPS) to enable remapable pin functions
  • Software Support
    • Class B Safety Library, IEC 60730 (planned)
    • MPLAB X Integrated Development Environment (IDE)
    • MPLAB® Harmony Integrated Software Framework
    • RTOS Kernels: Express Logic ThreadX, FreeRTOS™, OPENRTOS®, Micriμm® μC/OS™, and SEGGER
    • Mathworks Matlab® Blockset
    • SCILAB X2C Open Source Rapid Prototyping Tools
Parametrics
Name
Value
Part Family
PIC32MK GPG
Max CPU Speed MHz
120
Program Memory Size (KB)
256
SRAM (KB)
64
Temperature Range (C)
-40 to 125
Operating Voltage Range (V)
2.3 to 3.6
Direct Memory Access Channels
8
SPI
2
I2C
2
Number of Op Amps
4
CODEC Interface (I2S,AC97)
Yes
ADC Input
18
Max ADC Resolution (Bits)
12
Max ADC Sampling Rate (ksps)
3750
Number of DACs
2
Max 16-bit Digital Timers
9
Number of Comparators
5
Max I/O Pins
37
