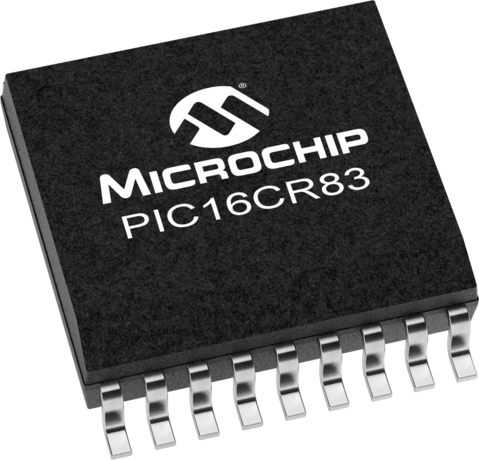

PIC16CR83

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

A newer device is available. Please consider PIC16F84A. This powerful (400 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS ROM/EEPROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances, and low power remote sensors, electronic locks and security applications.

Please consider this device PIC16F84A

Parametrics
Name
Value
Program Memory Type
ROM
Program Memory Size (KB)
0.875
CPU Speed (MIPS/DMIPS)
2.5
SRAM Bytes
36
Data EEPROM/HEF (bytes)
64
Timers
1 x 8-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2 to 6
Pin Count
18

Documents

Jump to:

Data Sheet

Errata

Brochures

Product Line Card

Reference Manual

Download All
10/15/2004
95KB

Brochures

Tips and Tricks

User Guides

Development Environment

  • Programmers
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Learn More
Add To Cart

Rohs data is currently unavailable.
