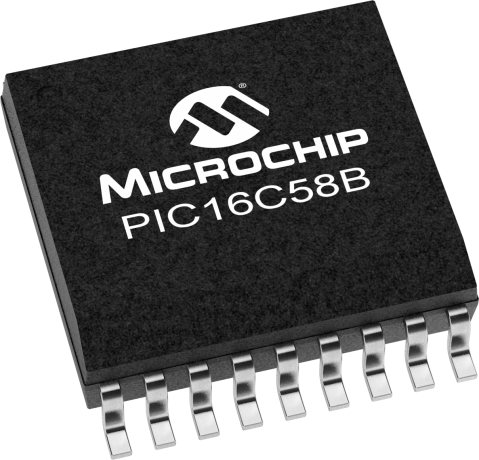

product primary image

PIC16C58B

Status: Not Recommended for new designs

Features:

  • Max speed: 40MHz
  • Only 33 single word instructions to learn
  • Programmable Code Protection
  • Power saving SLEEP mode
  • Low power consumption
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The PIC16C5X from Microchip Technology is a family of low cost, high performance, 8-bit fully static, EPROM/ROM-based CMOS microcontrollers. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16C5X delivers performance in an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

Please consider this device PIC16F57

Additional Features
  • Max speed: 40MHz
  • Only 33 single word instructions to learn
  • Programmable Code Protection
  • Power saving SLEEP mode
  • Low power consumption
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
3
CPU Speed (MIPS/DMIPS)
10
SRAM (KB)
73
Timers
1 x 8-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
18

Documents

Jump to:

Data Sheets

Development Environment

  • Programmers
  • Code Examples
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164360   PartNo: PIC16C58B (18P)
  • Socket: AC164307   PartNo: PIC16C58B (20SS)
  • Socket: AC164302   PartNo: PIC16C58B (18SO)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
18
0.75
25
$2.19

18
0.75
25
$2.19

18
0.75
25
$1.27

28
0.75
24
$2.69

28
0.75
24
$1.56

18
1.5
25
$2.80

18
1.5
25
$1.44

28
3
72
$3.42

28
3
72
$1.81

18
3
73
$1.52

18
0.75
25


18
0.75
25


18
1.5
25


28
3
72


18
3
73
