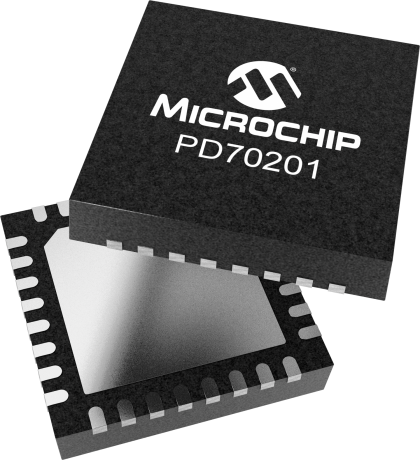

product primary image

PD70201

IEEE 802.3at PD front-end and PWM controller IC w/internal 0.6 Ohm FET

Status: In Production

Features:

  • IEEE 802.3at Type 2 compliant
  • Support for 4-pair applications of up to 48W with a single IC
  • Two-events classification flag
  • Less Than 10 µA (typical) offset current during detection
  • Signature resistor is disconnected upon detection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD70201 is an integrated Powered Device (PD) Interface and PWM controllers for a DC-DC converter used in IEEE 802.3at Type 2 applications. The PD70201 can be used for IEEE 802.3af, IEEE 802.3at applications. A single PD70201 can be used in 4-pair applications which consumes up to 47.7W. The device has several features designed to improve efficiency and reliability:

• Detection and classification
• Capacitor
• Gate drivers
• Peak current mode control
• Maximum duty cycle
• Soft-start circuit
• Low voltage protection warning and monitoring

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • IEEE 802.3at Type 2 compliant
  • Support for 4-pair applications of up to 48W with a single IC
  • Two-events classification flag
  • Less Than 10 µA (typical) offset current during detection
  • Signature resistor is disconnected upon detection
  • Programmable classification setting with a single resistor
  • Integrated 0.6 Ohm isolating MOSFET switch with inrush current limit
  • Power off DC-DC input capacitor discharge
  • 100 kHz to 500 kHz adjustable DC-DC switching frequency
  • DC-DC frequency can be synchronized to external clock
  • Supports low power mode operation for higher efficiency
  • Up to 50% duty cycle
  • Soft-start circuit to control the output voltage rise time
  • Two out-of-phase driver stages for efficient synchronous rectification or active clamp
  • PoE port input UVLO with programmable threshold and hysteresis
  • Internal differential amplifier simplifying non-isolated step down converter
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af, IEEE 802.3at, dual-IEEE 802.3at
IC Type
PD front end + PWM controller
POE Type
AT Type 2
PoE Class
1-4
Output Power
47W
Maximum Current
1.2A
Maximum Channel Resistance
0.6 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial
Integrated PWM Controller
Yes

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 12V 2.1A output
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 12V 2.1A output ( PD70201EVB25F-12 )

The PD70201EVB25F-12 evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device, PD70201ILQ, to support the detection, class, and power supplying phases on the 2/4 pairs of the Cat5 cable. PD70201ILQ supports a standard IEEE 802.3at Type 2 interface.

Learn More
Add To Cart
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 3.3V 7.5A output
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 3.3V 7.5A output ( PD70201EVB25F-3 )

The PD70201EVB25F-3 evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device, PD70201ILQ, to support the detection, class, and power supplying phases on the 2/4 Pairs of the Cat5 cable. PD70201ILQ supports a standard IEEE 802.3at Type 2 interface.

Learn More
Add To Cart
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 5V 5A output
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 5V 5A output ( PD70201EVB25F-5 )

The PD70201EVB25F-5 evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device, PD70201ILQ, to support the detection, class, and power supplying phases on the 2/4 pairs of the Cat5 cable. PD70201ILQ supports a standard IEEE 802.3at Type 2 interface.

Learn More
Add To Cart
IEEE802.3at/bt Type 2 PD Compact EVB PD70201 w/isolated FB conv. 5V 5A output
IEEE802.3at/bt Type 2 PD Compact EVB PD70201 w/isolated FB conv. 5V 5A output ( PD70201EVB25F-D-5 )

The PD70201EVB-25F-D-5 evaluation board is used for evaluating the performance of the PD70201 device, which contains both the standard 802.3at PD application interface, and a PWM controller. It provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device (PD70201ILQ) to support...

Learn More
Add To Cart
IEEE802.3at Type 2 EVB PD70201 w/isolated FWD conv. 3.3V 7.5A output
IEEE802.3at Type 2 EVB PD70201 w/isolated FWD conv. 3.3V 7.5A output ( PD70201EVB25FW-3 )

The PD70201EVB25FW-3 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70201 controller. The board is using a single PD controller, PD70201ILQ, to support the detection, class, and power supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70201ILQ...

Learn More
Add To Cart
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 12V 4Amp output
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated flyback conv. 12V 4Amp output ( PD70201EVB47F )

The PD70201EVB47F evaluation board provides designers with an environment needed to evaluate the performance and implementation of PD applications based on PD70201 device. The board is using a single PD device PD70201ILQ to support the detection, Class and Power supplying phases on the 4 pairs of the Cat5 cable. PD70201ILQ supports the current of the 4 pairs, which is twice the level of a standard...

Learn More
Add To Cart
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated FB conv. 5V 5A out 17-54V In
IEEE802.3at/bt Type 2 PD EVB PD70201 w/isolated FB conv. 5V 5A out 17-54V In ( PD70201EVB-U-25F-5 )

The PD70201EVB-U-25F-5 board is used for evaluating the performance of the PD70201 device in both standard IEEE 802.3at and non-standard applications with input 17-54 V . The board is a 25 W PD consisting of DC isolated DC-DC converter to step down voltage to 5 V. The AUX input gets priority in supplying the load, when it is connected to the application and the PD inputs act as backup power if the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70201ILQ-TR
0.000000
0.000000
32
VQFN
5x5x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
