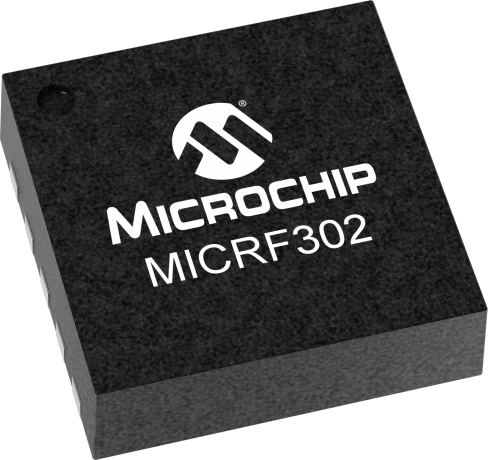

product primary image

MICRF302

Status: In Production

Features:

  • Small form factor: 10-pin MLF® package
  • Wide operating voltage range: 1.8 V to 3.6 V
  • Low current consumption: 130µA operating, 0.1µA Standby
  • On-chip clock generation requires no external components
  • Unique 20-bit internal address allows up to 1 million combinations to differentiate from adjacent encoders.
  • Selectable data rates: 0.6, 1, 3, 4.8kbps
  • 8-bit industry-standard CRC provides robust data protection
  • On-chip pullup resistors
  • On-chip deglitch makes it easy to use low-cost switches
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MICRF302 is a parallel encoder which works with QwikRadio® family radios to significantly shorten design time for RF products.  The part is easy to use, provides more communication distance, and it is extremely stable over operating temperature and operating voltage range.

The MICRF302 Parallel Encoder makes the transmission of encoding data simple. This device encodes data from four input pins, which have internal pull-up resistors and deglitching circuitry. These inputs can be connected to switches or external circuitry.  The MICRF302 outputs encoded data serially, and can be connected directly to any QwikRadio transmitter without any additional components.

The MICRF302 gives communication reliability through built-in CRC (cyclic redundancy check).  The MICRF302 needs no external components for clock generation.  Unlike other encoders on the market, there is no shift in performance with associated changes in operating temperature nor operating voltage. The internal clock provides stable data operations over a wide temperature range of -40°C to +85°C.   MICRF302 can operate from 1.8 V to 3.6 V.  The MICRF302 is battery friendly, and will work with alkaline, NiCd, NiMh, lithium ion, or lithium batteries.

Additional Features
    • Small form factor: 10-pin MLF® package
    • Wide operating voltage range: 1.8 V to 3.6 V
    • Low current consumption: 130µA operating, 0.1µA Standby
    • On-chip clock generation requires no external components
    • Unique 20-bit internal address allows up to 1 million combinations to differentiate from adjacent encoders.
    • Selectable data rates: 0.6, 1, 3, 4.8kbps
    • 8-bit industry-standard CRC provides robust data protection
    • On-chip pullup resistors
    • On-chip deglitch makes it easy to use low-cost switches
Parametrics
Name
Value
Type
Parallel Encoder
Pin Count
10
Packages
10-pin MLF
Operating Temperature
-40C to +85C
Standby Current (µA)
0.10
Tx Power Consumption (mA)
130µA
