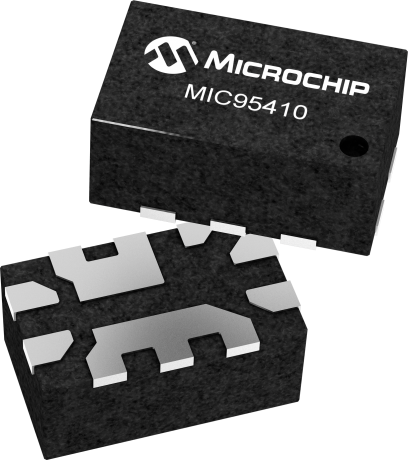

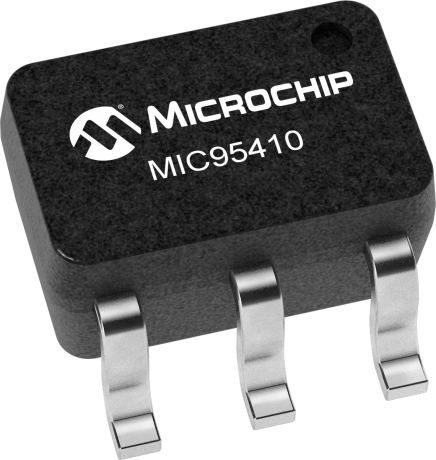

product primary image

MIC95410

High Side Load Switch 7A, 6.6mΩ

Status: In Production

Features:

  • Ultra-low RDS(on): 6.6mΩ typical
  • True 7A current capability
  • Power rail switching from sub-1V to 5.5V
  • Bias voltage form 2.7V to 9V
  • ≤1μA OFF-state bias supply current
  • ≤1μA OFF-state power switch leakage current
  • Adjustable slew rate for inrush current limiting by external capacitor
  • Load discharge
  • TTL-compatible control input
  • 10-pin 1.2mm × 2.0mm QFN package, 0.5mm pin pitch
  • –40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC95410 is a high-side load switch for computing and ultra-dense embedded computing boards where high-current low-voltage rails from sub-1V to 5.5V have to be sectioned. The integrated 6.6mΩ RDS(ON) N-channel MOSFET ensures low voltage drop and low power dissipation while delivering up to 7A of load current. The MIC95410 is internally powered by a separated bias voltage from 2.7V to 9V. It includes a TTL-logic level to gate a voltage translator driving a charge pump, and an output discharge function when disabled. The OFF-state current from bias supply (VS) and the power switch OFF-state leakage current (IOFF) are both below 1μA. The MIC95410 provides user-adjustable slew-rate-controlled turn-on to limit the inrush current to the input supply voltage. The MIC95410 is available in a thermally efficient, space-saving 10-pin 1.2mm x 2.0mm QFN package with 0.5mm pin pitch and an operating junction temperature range from –40°C to +125°C.

Additional Features
    • Ultra-low RDS(on): 6.6mΩ typical
    • True 7A current capability
    • Power rail switching from sub-1V to 5.5V
    • Bias voltage form 2.7V to 9V
    • ≤1μA OFF-state bias supply current
    • ≤1μA OFF-state power switch leakage current
    • Adjustable slew rate for inrush current limiting by external capacitor
    • Load discharge
    • TTL-compatible control input
    • 10-pin 1.2mm × 2.0mm QFN package, 0.5mm pin pitch
    • –40°C to +125°C junction temperature range
Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
0.5
Vin Max (V)
5.5
Max SW Current (A)
7
RDS ON @5V (mΩ)
6.6
Soft Start (µS)
1100
Load Discharge(Ω)
2300
Enable Logic
High True
VEN (V)
2
Θja (C/W)
60

Documents

Jump to:

Data Sheets

11/09/2015
821KB

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC95410YFL Evaluation Board
MIC95410YFL Evaluation Board ( MIC95410YFL-EV )

The MIC95410 is a high-side load switch used for computing and for ultra-dense embedded computing boards where high-current, low-voltage rails from sub-1V to 5.5V have to be sectioned. The integrated 6.6mΩ RDS(ON) N-channel MOSFET ensures low voltage drop and low power dissipation while delivering up to 7A of load current.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC95410YFL-T5
0.006000
0.711750
10
VQFN
1.2x2.0x0.9mm
Matte Tin
e3
MIC95410YFL-TR
0.006000
0.711750
10
VQFN
1.2x2.0x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
