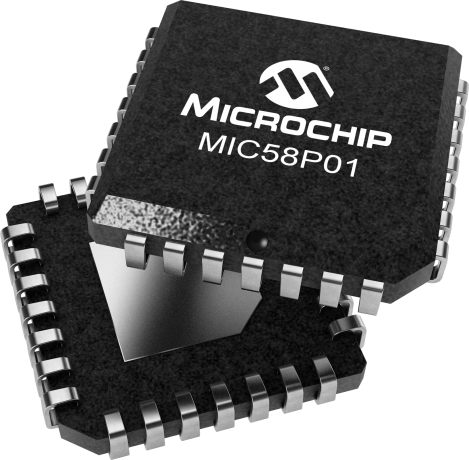

product primary image

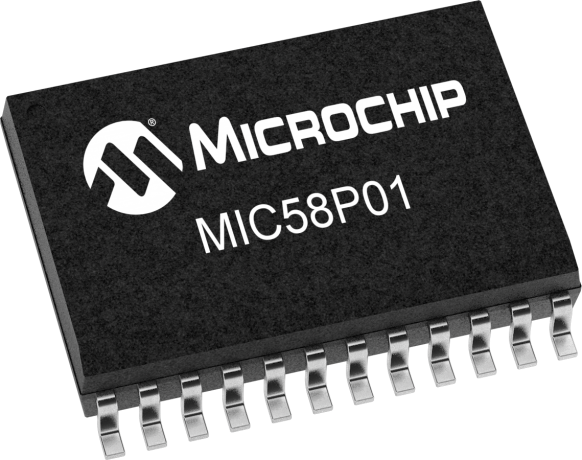

MIC58P01

8-Bit Parallel Input Protected Latched Driver

Status: In Production

Features:

  • 4.4MHz Minimum Data Input Rate
  • High-Voltage, High-Current Outputs
  • Per-Output Overcurrent Shutdown (500mA typical)
  • Undervoltage Lockout
  • Thermal Shutdown
  • Output Transient Protection Diodes
  • CMOS, PMOS, NMOS, and TTL Compatible Inputs
  • Internal Pull-Down Resistors
  • Low-Power CMOS Latches
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MIC58P01 parallel-input latched driver is a high-voltage (80V), high-current (500mA) integrated circuit comprised of eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions. Similar to the MIC5801, additional protection circuitry supplied on this device includes thermal shutdown, under voltage lockout (UVLO), and overcurrent shutdown. The bipolar/CMOS combination provides an extremely low-power latch with maximum interface flexibility. The MIC58P01 has open-collector outputs capable of sinking 500mA and integral diodes for inductive load transient suppression with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers may be paralleled for higher load current capability. With a 5V logic supply, the MIC58P01 will typically operate at better than 5MHz. With a 12V logic supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits. TTL circuits may require pull-up resistors. Each of these eight outputs has an independent overcurrent shutdown of 500mA. Upon current shutdown, the affected channel will turn OFF until VDD is cycled or the ENABLE/RESET pin is pulsed high. Current pulses less than 2µs will not activate current shutdown. Temperatures above 165°C will shut down all outputs. The UVLO circuit disables the outputs at low VDD; hysteresis of 0.5V is provided.

Additional Features
    • 4.4MHz Minimum Data Input Rate
    • High-Voltage, High-Current Outputs
    • Per-Output Overcurrent Shutdown (500mA typical)
    • Undervoltage Lockout
    • Thermal Shutdown
    • Output Transient Protection Diodes
    • CMOS, PMOS, NMOS, and TTL Compatible Inputs
    • Internal Pull-Down Resistors
    • Low-Power CMOS Latches
Parametrics
Name
Value
Type
Sink
Output Channels
8
Vout (V) operating – Transient
80
Vout (V) Operating - Sustained
80
Iout (mA) per Channel
500
Output Structure
Darlington Open Collector
Input Structure
Parallel
Minimum Data Clock (MHz)
--
General Description
8-Bit Parallel Input Protected Latched Driver
Package
24/SOIC 300mil 28/PLCC

Documents

Jump to:

Data Sheet

02/27/2019
698KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC58P01YV-TR
1.205700
2.028933
28
PLCC
-
Matte Tin
e3
MIC58P01YV
1.205700
1.787932
28
PLCC
-
Matte Tin
e3
MIC58P01YN
0.000000
22
PDIP
.300in
Matte Tin
e3
MIC58P01YWM-TR
0.662000
1.000000
24
SOIC
.300in
Matte Tin
e3
MIC58P01YWM
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
