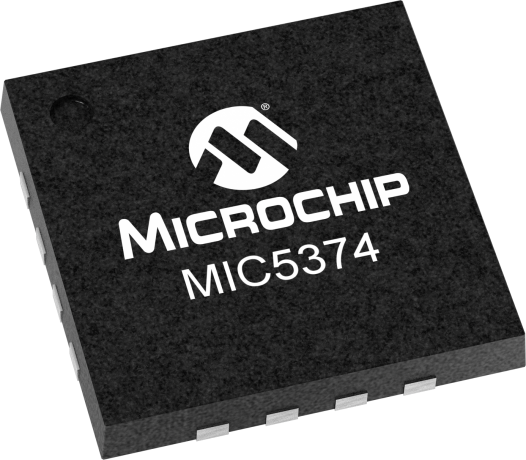

MIC5374

Triple 200mA LDO w/User Defined Voltage Monitoring and Real Time Clock LDO

Status: In Production

Features:

  • 1.7V to 5.5V input supply voltage range
  • Output current: 200mA LDO1/2/3, 1mA LDO4
  • LDO4: Ultra low 8 µA I BIAS for RTC support
  • High output accuracy (±2%)
  • Independent enable pins
  • POR voltage input
  • Adjustable delay time
  • Manual reset pin
  • Low dropout voltage: 170mV at 150mA
  • High PSRR: 55dB at 1kHz on each LDO
  • Stable with tiny ceramic output capacitors
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5374/84 is a four output device with three 200mA LDOs and a Real Time Clock (RTC) 1mA LDO which is ideal for application processor support in mobile platforms. The MIC5374 provides independent control active high enables for each of the 200mA LDOs with an additional always-on RTC LDO. The MIC5384 provides active low enables.

The MIC5374/84 is designed for high input ripple rejection (high PSRR) and provides low output noise making it ideal for powering sensitive RF circuitry such as GPS, WiFi, and Bluetooth applications. The MIC5374/84 also incorporates a power-on reset (POR) supervisor with adjustable delay time set by an external capacitor, and an independent input pin to monitor any voltage level. Once high the POR output can be asserted low again by enabling the manual reset (MR) pin. When the MR pin is restored low the POR output will re-time the delay set by the external delay capacitor.

The MIC5374/84 operates with very small ceramic output capacitors to reduce board space and component cost. It is available in various fixed output voltages. The MIC5374/84 has a junction temperature range from -40°C to +125°C.

Additional Features
    • 1.7V to 5.5V input supply voltage range
    • Output current: 200mA LDO1/2/3, 1mA LDO4
    • LDO4: Ultra low 8 µA I BIAS for RTC support
    • High output accuracy (±2%)
    • Independent enable pins
    • POR with user-defined voltage monitoring
      • POR voltage input
      • Adjustable delay time
      • Manual reset pin
    • Low dropout voltage: 170mV at 150mA
    • High PSRR: 55dB at 1kHz on each LDO
    • Stable with tiny ceramic output capacitors
    • Thermal shutdown and current limit protection
Parametrics
Name
Value
Product Type
Multi-Channel LDOs
# of Out
4
IOUT #1
200
IOUT #2
200
IOUT #3
200
IOUT #4
1
IOUT (mA)
200, 1
VIN Min (V)
1.7
VIN Max (V)
5.5
VOUT (V)
3.3/2.5/1.8/1.0
Voltage Drop Typ (mV)
170
IGND Typ (µA)
3
Tol Typ %
±2
Noise (µV) rms
200
PSRR 1 kHz (dB)
55
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect
