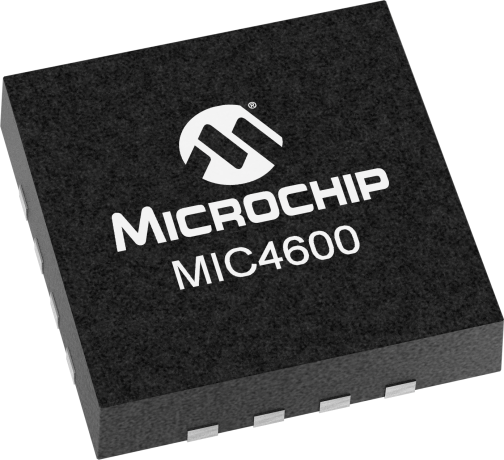

product primary image

MIC4600

28V Half-Bridge MOSFET Driver

Status: In Production

Features:

  • Adjustable dead time circuitry
  • Anti-shoot-through protection
  • Internal LDO for single supply operation
  • Input voltage range: 4.5V to 28V
  • Fast propagation delay: 20ns
  • Up to 1.5 MHz operation
  • Low voltage logic level inputs for µC or FPGA driven power solutions
  • Independent inputs for low and high side drivers
  • 2Ω gate drive capable of driving 3000pF load with 15ns rise and fall times
  • Low 450µA typical quiescent current
  • 3mm x 3mm QFN package
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Micrel MIC4600 is a 28V half bridge MOSFET driver targeted for cost sensitive applications requiring high performance such as set-top boxes, gateways, routers, computing peripherals, telecom and networking equipment. The MIC4600 operates over a supply range of 4.5V to 28V. It has an internal linear regulator which provides a regulated 5V to power the MOSFET gate drive and operates up to 1.5MHz switching frequency. The MIC4600 uses an adjustable dead time circuit to prevent shoot-through in the external high and low-side MOSFETs. The MIC4600 is available in a small 3mm x 3mm QFN package with a junction temperature range of -40°C to 125°C.

Additional Features
    • Adjustable dead time circuitry
    • Anti-shoot-through protection
    • Internal LDO for single supply operation
    • Input voltage range: 4.5V to 28V
    • Fast propagation delay: 20ns
    • Up to 1.5 MHz operation
    • Low voltage logic level inputs for µC or FPGA driven power solutions
    • Independent inputs for low and high side drivers
    • 2Ω gate drive capable of driving 3000pF load with 15ns rise and fall times
    • Low 450µA typical quiescent current
    • 3mm x 3mm QFN package
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
MOSFET Driver Type
Synchronous
Driver Type
Half Bridge Driver
Configuration
Dual Inputs, Single PWM
Peak Output Current (source/sink, A)
1.0/1.0
Output Resistance (source/sink, Ω)
2.0/1.5
Propagation Delay (Td1/Td2, ns)
26/55
Rise/Fall Time (Tr/Tf, ns)
15/13.5
Capacitive Load Drive
1000 pF in 26 ns
Features
Internal 5V LDO

Documents

Jump to:

Data Sheets


1946KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC4600YML-T5
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
MIC4600YML-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
