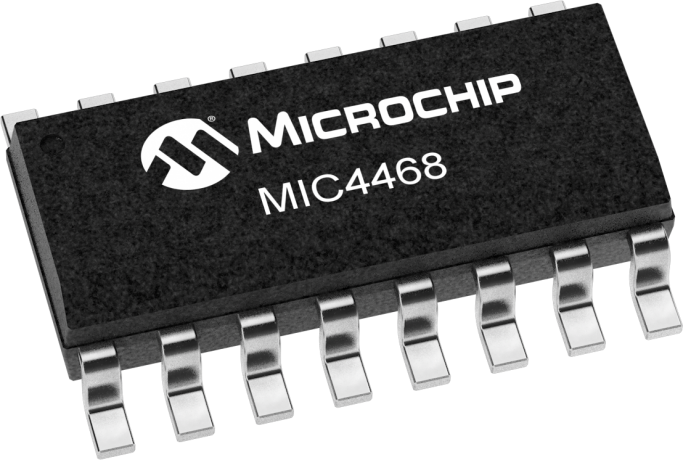

product primary image

MIC4468

Status: In Production

Features:

  • Built using reliable, low power CMOS processes
  • Latchproof: withstands 500mA inductive kickback
  • Three input logic choices
  • Symmetrical rise and fall times 25ns
  • Short, equal delay times 75ns
  • High peak output current 1.2A
  • Wide operating range 4.5 to 18V
  • Low equivalent input capacitance (typ) 6pF
  • Inputs = Logic 1 for any input from 2.4V to VS
  • ESD protected
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC4467/8/9 family of 4-output CMOS buffer/drivers is an expansion from the earlier single- and dual-output drivers, to which they are functionally closely related. Because package pin count permitted it, each driver has been equipped with a 2-input logic gate for added flexibility. Placing four high-power drivers in a single package also improves system reliability and reduces total system cost. In some applications, one of these drivers can replace not only two packages of single-input drivers, but some of the associated logic as well. Although primarily intended for driving power MOSFETs, and similar highly capacitive loads, these drivers are equally well suited to driving any other load (capacitive, resistive, or inductive), which requires a high-efficiency, low-impedance driver capable of high peak currents, rail-to-rail voltage swings, and fast switching times. For example, heavily loaded clock lines, coaxial cables, and piezoelectric transducers can all be driven easily with MIC446X series drivers. The only limitation on loading is that total power dissipation in the IC must be kept within the power dissipation limits of the package. The MIC446X series drivers are built using a BCD process. They will not latch under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (either polarity) occurs on the ground line. They can accept up to half an amp of inductive kickback current (either polarity) into their outputs without damage or logic upset.

Additional Features
    • Built using reliable, low power CMOS processes
    • Latchproof: withstands 500mA inductive kickback
    • Three input logic choices
    • Symmetrical rise and fall times 25ns
    • Short, equal delay times 75ns
    • High peak output current 1.2A
    • Wide operating range 4.5 to 18V
    • Low equivalent input capacitance (typ) 6pF
    • Inputs = Logic 1 for any input from 2.4V to VS
    • ESD protected
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Quad
Configuration
Non-inverting
Peak Output Current (source/sink, A)
1.2/1.2
Output Resistance (source/sink, Ω)
5/5
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
35/55
Rise/Fall Time (Tr/Tf, ns)
5/5
Capacitive Load Drive
470 pF in 14 ns
Features
Latch-up Protected; Input to –5V

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC4468YWM
0.438000
0.765957
16
SOIC
.300In
Matte Tin
e3
MIC4468YWM-TR
0.438000
0.800000
16
SOIC
.300In
Matte Tin
e3
MIC4468ZWM
0.438000
0.765957
16
SOIC
.300In
Matte Tin
e3
MIC4468ZWM-TR
0.438000
0.800000
16
SOIC
.300In
Matte Tin
e3
MIC4468YN
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MIC4468ZN
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
