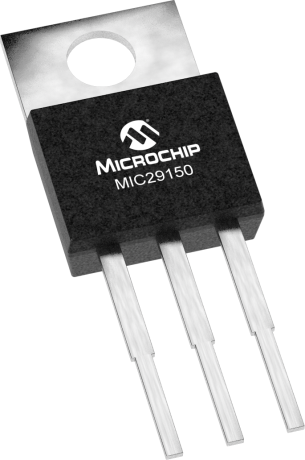

product primary image

MIC29150

1.5A LDO Fixed Voltage

Status: In Production

Features:

  • Fast transient response
  • 5A current capability
  • 700mV dropout voltage at full load
  • Low ground current
  • Accurate 1% guaranteed tolerance
  • Zero current shutdown mode (MIC29512)
  • Fixed voltage and adjustable versions
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC29510 and MIC29512 are high-current, high-accuracy, low-dropout voltage regulators featuring fast transient recovery from input voltage surges and output load current changes. These regulators use a PNP pass element that features proprietary Super βeta PNP® process.

The MIC29510/2 is available in two versions: the 3-pin fixed output MIC29510 and the 5-pin adjustable output voltage MIC29512. All versions are fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, over-temperature operation, and positive and negative transient voltage spikes.

A TTL-compatible enable (EN) control pin supports external on/off control. If on/off control is not required, the device may be continuously enabled by connecting EN to IN.

The MIC29510/2 is available in the standard 3- and 5-pin TO-220 package with an operating junction temperature range of 0°C to +125°C.

For applications requiring even lower dropout voltage, input voltage greater than 16V, or an error flag, see the MIC29500/29501/29502/29503

Additional Features
    • Fast transient response
    • 5A current capability
    • 700mV dropout voltage at full load
    • Low ground current
    • Accurate 1% guaranteed tolerance
    • Zero current shutdown mode (MIC29512)
    • Fixed voltage and adjustable versions
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
1500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
1500
VIN Min (V)
2.3
VIN Max (V)
26
VOUT (V)
3.3, 5.0, 12
Voltage Drop Typ (mV)
350
IGND Typ (µA)
8000
Tol Typ %
±1
Noise (µV) rms
260
Soft Start Pin
Load Dump
Yes
Rev Bat
Yes
Reverse Current Protect
Yes

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC29150-3.3WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC29150-3.3WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC29150-5.0WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC29150-3.3WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC29150-12WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC29150-12WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC29150-5.0WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC29150-12WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC29150-5.0WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
