MIC2860-2P

2 Channel Linear WLED Driver

Status: In Production

Features:

  • High efficiency (no switching losses)
  • PWM frequency as low as 250Hz
  • Input voltage range: 3.0V to 5.5V
  • Linear driver dropout of 52mV at 30.2mA
  • Matching better than ±0.5% (typical)
  • Current accuracy better than 1.0% (typical)
  • Available in Thin SOT-23 and SC-70 packages
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MIC2860-2P is a high-efficiency white LED (WLED) driver designed to drive two WLEDs and greatly extend battery life for portable display backlighting and keypad backlighting in low cost mobile devices. The MIC2860-2P architecture provides the highest possible efficiency by eliminating switching losses present in traditional charge pumps or inductive boost circuits. It features a typical dropout of 52mV at 30.2mA per channel. This allows the WLEDs to be driven directly from the battery eliminating switching noise and losses present with the use of boost circuitry.

The two channels have typical matching of ±0.5%, which helps ensure uniform display illumination under all conditions. The WLEDs brightness is externally preset by a resistor and dimmed using PWM interface operating down to less than 1% duty cycle.

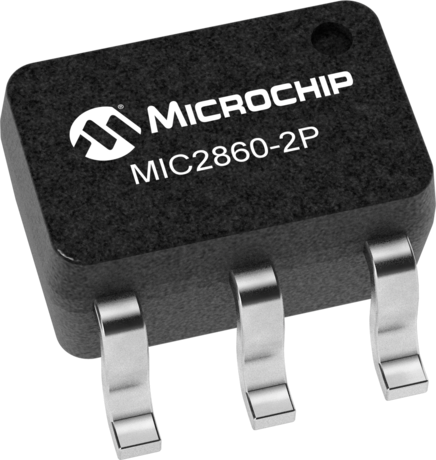

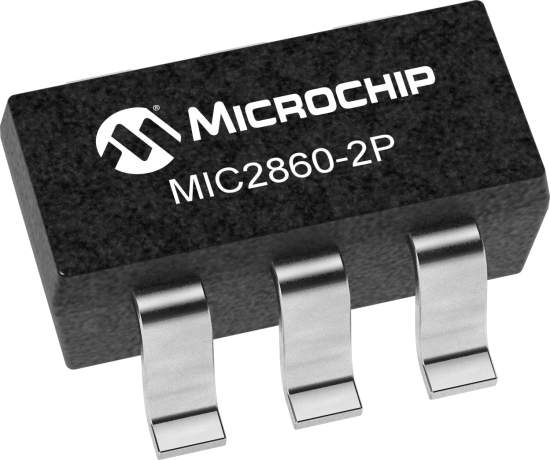

The MIC2860-2P is available in Thin SOT-23 and SC-70 6-pin packages with a junction temperature range of -40°C to +125°C.

Additional Features
    • High efficiency (no switching losses)
    • PWM frequency as low as 250Hz
    • Input voltage range: 3.0V to 5.5V
    • Linear driver dropout of 52mV at 30.2mA
    • Matching better than ±0.5% (typical)
    • Current accuracy better than 1.0% (typical)
    • Available in Thin SOT-23 and SC-70 packages
Parametrics
Name
Value
Topology
Linear
+Vin min (V)
3
+Vin max (V)
5.5
Dimming
PWM
Package
SC70, TSOT
Product Type
Linear LED Drivers
# of White LEDs
2 @ 30.2mA
Operating Iq (µA)
0.7
ILED Matching
±0.5%
Θja (C/W)
256, 177
Vdropout @ 20mA
52mV @ 30.2mA

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Topology
+Vin min (V)
+Vin max (V)
Price 5K
Buck
15
450
$0.58
Buck
7
13.2
$0.35
Buck
7
16
$0.35
2-Stage
102
265
$0.34
Buck-Boost
9.5
17.5
$0.41
Buck-Boost
9.5
17.5
$0.41
Buck
8
450
$0.65
Buck
8
450
$0.66
Buck
15
450
$0.29
Buck
4.5
40
$0.57
Buck
4.5
40
$0.52
Buck
20
400
$0.46
Buck
20
400
$0.49
Buck
20
400
$0.47
Buck
20
400
$0.72
Cuk
8
200
$0.73
Buck
8
450
$0.73
Buck
8
450
$1.14
Linear
3
5.5
$0.38
Linear
3
5.5
$0.40
Linear
3
5.5
$0.35
Linear
3
5.5
$0.45
Linear
3
5.5
$0.47

3
5.5
$0.67
Linear
3
5.5
$0.27
Linear
3
5.5
$0.27
Buck
6
20
$1.09
Buck
6
37
$1.29
Buck
6
37
$1.22
Buck
4.5
42
$0.76
Buck
4.5
40
$0.73
Boost
6
45
$1.35
Boost
6
45
$1.40
Boost
6
45
$1.24
Linear
3
5.5
$0.55
Linear
3
5.5
$0.65
Linear
3
5.5
$0.58
Linear
3
5.5
$0.72
Linear
4.75
5.5
$2.14
Linear
4.75
11
$2.40
Linear
4.75
11
$2.40

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2860-2PYC6-TR
0.006500
0.036667
6
SC70
-
NiPdAu
e4
MIC2860-2PYD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
