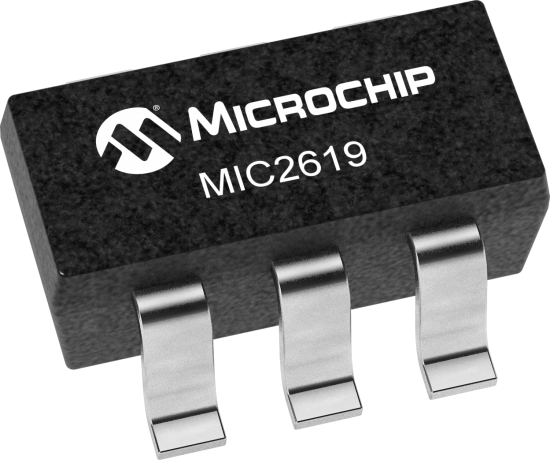

MIC2619

1.2MHz 350mA Isw PWM Boost Converter with OVP

Status: In Production

Features:

  • 2.8V to 6.5V input voltage
  • 350mA switch current
  • Output voltage up to 35V
  • 1.2MHz PWM operation
  • 1.265V feedback voltage
  • Programmable over-voltage protection (OVP)
  • <1% line regulation
  • <1µA shutdown current
  • Over-temperature protection
  • Under-voltage lock out (UVLO)
  • Low profile Thin SOT-23-6 package
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2619 is a 1.2MHz pulse width modulated (PWM) step-up switching regulator that is optimized for low power, high output voltage applications. With a maximum output voltage of 35V, and a switch current of over 350mA, the MIC2619 can easily supply most high voltage bias applications, such as TV tuners.

The MIC2619 implements a constant frequency 1.2MHz PWM current-mode control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The additional benefit of the constant frequency PWM control scheme as opposed to variable frequency control schemes is lower output noise and smaller input ripple injected back to the battery source. The MIC2619 has programmable overvoltage protection to ensure output protection in case of fault condition.

The MIC2619 is available in a low profile Thin SOT-23 6-pin package. The MIC2619 has a junction temperature range of -40°C to +125°C.

Additional Features
    • 2.8V to 6.5V input voltage
    • 350mA switch current
    • Output voltage up to 35V
    • 1.2MHz PWM operation
    • 1.265V feedback voltage
    • Programmable over-voltage protection (OVP)
    • <1% line regulation
    • <1µA shutdown current
    • Over-temperature protection
    • Under-voltage lock out (UVLO)
    • Low profile Thin SOT-23-6 package
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Up (Boost)
Input Voltage Range Min (V)
2.8
Input Voltage Range Max (V)
6.5
Output Voltage Range Min (V)
2.8
Output Voltage Range Max (V)
35
Output Current (mA) max
350
Quiescent Current (mA) typ
2.1
Switching Frequency (kHz)
1200
Operating Temp Range
-40 to 125
Vfb (V)
1.265
Duty Cycle Max (%)
90
SHUTDOWN Current (µA) (Typ)
0.04
Switch current (A) typ
0.35

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC2619YD6 Evaluation Board
MIC2619YD6 Evaluation Board ( MIC2619YD6-EV )

The MIC2619 is a 1.2MHz pulse width modulated (PWM) step-up switching regulator that is optimized for low power, high output voltage applications. With a maximum output voltage of 35V and a switch current of over 350mA, the MIC2619 can easily supply most high voltage bias applications, such as TV tuners.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2619YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
