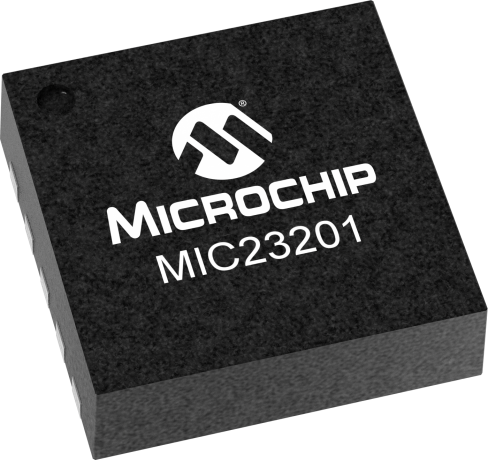

product primary image

MIC23201

2MHz 2A Hyper Speed Control™ Synchronous Buck Regulator

Status: In Production

Features:

  • Input voltage: 2.7V to 5.5V
  • 2A output current
  • Up to 90% peak efficiency
  • Programmable Soft-Start
  • Power Good Indicator
  • 2MHz switching frequency
  • Safe for pre-biased output
  • Ultra fast transient response
  • Low voltage output ripple, 16mV at full load
  • Fully integrated MOSFET switches
  • 0.01µA shutdown current
  • Thermal shutdown and current limit protection
  • Output Voltage as low as 0.9
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC23201 is a high efficiency 2MHz 2A synchronous buck regulator with Hyper Speed Control.  Hyper Speed Control™ provides ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.

The MIC23201 is designed for use with a very small inductor, down to 1µH, and an output capacitor as small as 22µF that enables a total solution size, less than 1.5mm height.

The MIC23201 provides a constant switching frequency around 2MHz while achieving peak efficiencies up to 90%.

Additional Features
    • Input voltage: 2.7V to 5.5V
    • 2A output current
    • Up to 90% peak efficiency
    • Programmable Soft-Start
    • Power Good Indicator
    • 2MHz switching frequency
    • Safe for pre-biased output
    • Ultra fast transient response
    • Low voltage output ripple, 16mV at full load
    • Fully integrated MOSFET switches
    • 0.01µA shutdown current
    • Thermal shutdown and current limit protection
    • Output Voltage as low as 0.9
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
2.7
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.62
Output Voltage Range Max (V)
3.6
Output Current (mA) max
2000
Quiescent Current (mA) typ
1.15
Switching Frequency (kHz)
2000
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Vfb (V)
0.62
Duty Cycle Max (%)
80
SHUTDOWN Current (µA) (Typ)
1.34

Documents

Jump to:

Applications Source code

09/14/2017
362KB

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - MIC23201

The MIC23201 is a high efficiency 2MHz 2A synchronous buck regulator with Hyper Speed Control.  Hyper Speed Control™ provides ultra-fast transient response which is perfectly suited for...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC23201YML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC23201YML-T5
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
