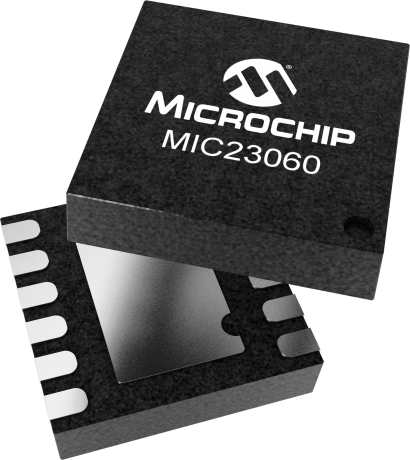

product primary image

MIC23060

4MHz 600mA HyperLight Load® DC/DC + 300mA LDO w/Integrated Sequencing

Status: In Production

Features:

  • 2.7V to 5.5V supply voltage range
  • Dual Input LDO™ can turn-on prior to DC/DC converter and automatically switch post regulation from the DC/DC converter after it starts
  • Power for LDO from input during start-up
  • Adjustable delay time between outputs
  • Zero-current off mode
  • Current-limit and thermal shutdown protection
  • Up to 600mA output current in PWM mode (shared between switcher and linear LDO regulator outputs)
  • 4MHz frequency in continuous PWM mode
  • Tiny 2.2µH inductor, 4.7µF capacitor
  • 85% Efficiency at 1mA output current
  • >90% peak efficiency
  • Low output voltage ripple across all loads
  • Low Input voltage LDO regulator
  • Stable with ceramic output capacitors
  • Regulates from the output of the DC/DC converter
  • 300mA output current capability
  • High Accuracy: ±3% over temperature
  • High PSRR: greater than 60dB
  • Very low quiescent current: 16µA
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC23060 is a highly efficient power management IC integrating a high frequency DC/DC converter with HyperLight Load® mode and a low input voltage capable LDO. The MIC23060 offers two output voltages at very high efficiency on both outputs while maintaining a low total system cost.The MIC23060 also provides sequencing of the two outputs in every potential combination of turn-on and turn-off sequencing by connecting two pins either high or low, and using a single GPIO to enable and disable the device. The LDO is designed both to post regulate from the output of the DC/DC converter for high system efficiency, and/or power directly from the battery. For sequences where the LDO is enabled prior to the DC/DC output, the LDO is first powered by the input voltage (typically the battery source) and then after the DCDC soft start is complete, seamlessly transition LDO input power to draw from the output of the DC/DC converter for higher efficiency operation through post-regulation.The DC/DC converter in the MIC23060 is a HyperLight Load® converter with very high efficiency at light load and at full operating current, maintaining high efficiency across all operating modes in portable electronics.The MIC23060 is a µCap design, operating with small ceramic output capacitors and tiny inductors for stability, reducing required board space and component cost.

Additional Features
      • 2.7V to 5.5V supply voltage range
      • Integrated sequencing
        • Dual Input LDO™ can turn-on prior to DC/DC converter and automatically switch post regulation from the DC/DC converter after it starts
        • Power for LDO from input during start-up
        • Adjustable delay time between outputs
      • Zero-current off mode
      • Current-limit and thermal shutdown protection
      HyperLight Load® DC/DC Converter
      • Up to 600mA output current in PWM mode (shared between switcher and linear LDO regulator outputs)
      • 4MHz frequency in continuous PWM mode
      • Tiny 2.2µH inductor, 4.7µF capacitor
      • 85% Efficiency at 1mA output current
      • >90% peak efficiency
      • Low output voltage ripple across all loads
      LDO Regulator
      • Low Input voltage LDO regulator
      • Stable with ceramic output capacitors
      • Regulates from the output of the DC/DC converter
      • 300mA output current capability
      • High Accuracy: ±3% over temperature
      • High PSRR: greater than 60dB
      • Very low quiescent current: 16µA
Parametrics
Name
Value
IOUT (A)
600
IOUT LDO (mA)
300
LDO
1.2V
VOUT (V)
1.8V/3.3V
Type
PMIC
HLL Mode
Yes
Short Description
4MHz 600mA DC/DC Regulator and 300mA LDO Regulator with flexible sequencing feature. DC/DC features HyperLight Load™. >95% efficiency.
VIN Max (V)
5.5
Oja (C/W)
66
VIN Min (V)
2.7

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC23060-G4YMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
