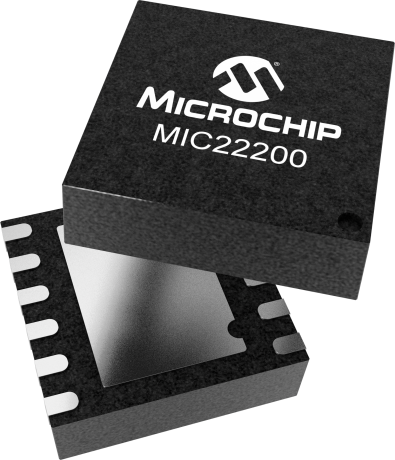

product primary image

MIC22200

4MHz 2A Synchronous Buck Regulator w/Programmable Frequency

Status: In Production

Features:

  • Input voltage range: 2.6V to 5.5V
  • Adjustable output voltage option down to 0.7V
  • Output current to 2A
  • Full sequencing and tracking capability
  • Easy RC compensation
  • Power On Reset (POR) output
  • Efficiency >90% across a broad load range
  • Operating frequency: Programmable from 800 kHz up to 4MHz
  • Ultra fast transient response
  • 100% maximum duty cycle
  • Fully integrated MOSFET switches
  • Micropower shutdown
  • Thermal shutdown and current limit protection
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC22200 is a high efficiency, 2A integrated switch synchronous buck (step-down) regulator. The MIC22200 switching frequency is programmable from 800kHz to 4MHz, allowing the customer to optimize their designs either for efficiency or for the smallest footprint. The regulator achieves efficiencies as high as 95% while still switching at 1MHz over a broad load range.

The ultra high speed control loops keep the output voltage within regulation even under the extreme transient load swings commonly found in FPGAs and low-voltage ASICs.

The output voltage can be adjusted down to 0.7V to address all low voltage power needs.

The MIC22200 offers a full range of sequencing and tracking options. The Enable/Delay pin, combined with the Power-On-Reset (POR) pin, allows multiple outputs to be sequenced in many ways during turn on and turn off. The Ramp Control™ (RC) pin allows the device to be connected to another device in the MIC22X00 family of products to keep the output voltages within a certain delta V on start up.

Additional Features
    • Input voltage range: 2.6V to 5.5V
    • Adjustable output voltage option down to 0.7V
    • Output current to 2A
    • Full sequencing and tracking capability
    • Easy RC compensation
    • Power On Reset (POR) output
    • Efficiency >90% across a broad load range
    • Operating frequency: Programmable from 800 kHz up to 4MHz
    • Ultra fast transient response
    • 100% maximum duty cycle
    • Fully integrated MOSFET switches
    • Micropower shutdown
    • Thermal shutdown and current limit protection
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
2.6
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.7
Output Voltage Range Max (V)
5.5
Output Current (mA) max
2000
Quiescent Current (mA) typ
1.2
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Vfb (V)
0.7
Duty Cycle Max (%)
1
SHUTDOWN Current (µA) (Typ)
3.7

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC22200YML Evaluation Board
MIC22200YML Evaluation Board ( MIC22200YML-EV )

This board enables the evaluation of the MIC22200; a high power density, frequency-adjustable synchronous buck regulator. The MIC22200 features integrated 2A MOSFETs, integrated frequency compensation, flexible sequencing and tracking abilities. The board is optimized for ease of testing, with all major components are on a single side. The voltage mode feedback loop is designed to allow high...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC22200YML-TR
0.023840
0.644302
12
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
