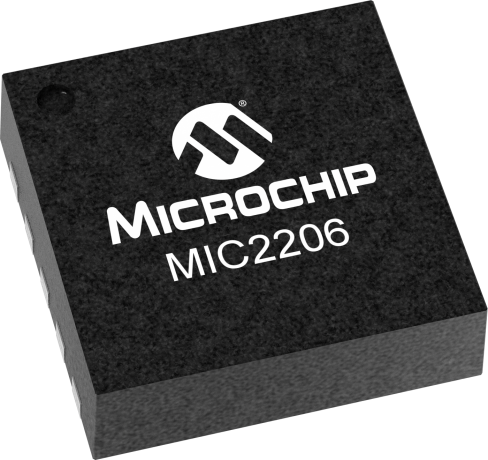

product primary image

MIC2206

2MHz 600mA PWM Synchronous Buck Regulator w/LowQ® Mode

Status: In Production

Features:

  • 2.7V to 5.5V supply voltage
  • 18µA quiescent current
  • Low noise, 75µVrms
  • 2MHz PWM mode
  • >95% efficiency
  • 100% maximum duty cycle
  • Output Voltage Scaling (1V output in LowQ® Mode)
  • Ultra-fast transient response
  • Stable with 1mF ceramic output capacitor
  • Fully integrated MOSFET switches
  • Micropower shutdown
  • Thermal shutdown and current limit protection
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2206 is a high efficiency 2MHz PWM synchronous buck (step-down) regulator that features a LowQ® LDO standby mode that draws only 18mA of quiescent current. The MIC2206 allows an ultra-low noise, small size, and high efficiency solution for portable power applications.

In PWM mode, the MIC2206 operates with a constant frequency 2MHz PWM control.  Under light load conditions, such as in system sleep or standby modes, the PWM switching operation can be disabled to reduce switching losses. In this light load LowQ® mode, the LDO maintains an output voltage of 1V and draws only 18µAmp of quiescent current. The LDO mode of operation saves battery life while not introducing spurious noise and high ripple as experienced with pulse skipping or bursting mode regulators.

The MIC2206 operates from 2.7V to 5.5V input and features internal power MOSFETs that can supply up to 600mA output current in PWM mode. It can operate with a maximum duty cycle of 100% for use in low-dropout conditions.

Additional Features
    • 2.7V to 5.5V supply voltage
    • Light load LowQ® LDO mode
      • 18µA quiescent current
      • Low noise, 75µVrms
    • 2MHz PWM mode
    • Output current to 600mA
      • >95% efficiency
      • 100% maximum duty cycle
    • Output Voltage Scaling (1V output in LowQ® Mode)
    • Ultra-fast transient response
    • Stable with 1mF ceramic output capacitor
    • Fully integrated MOSFET switches
    • Micropower shutdown
    • Thermal shutdown and current limit protection
    • -40°C to +125°C junction temperature range





    Parametrics
    Name
    Value
    Regulator Type
    Step Down (Buck)
    # of Outputs
    1
    Input Voltage Range Min (V)
    2.7
    Input Voltage Range Max (V)
    5.5
    Output Voltage Range Min (V)
    1
    Output Voltage Range Max (V)
    5.5
    Output Current (mA) max
    600
    Quiescent Current (mA) typ
    0.57
    Switching Frequency (kHz)
    2000
    Synchronous Rectifier
    Yes
    Operating Temp Range
    -40 to 125
    Vfb (V)
    1
    Duty Cycle Max (%)
    1
    SHUTDOWN Current (µA) (Typ)
    0.1

    Documents

    Jump to:

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MIC2206-1.8YML-TR
    0.022700
    0.643702
    10
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2206-9IYML-TR
    0.022700
    0.643702
    10
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2206-1.2YML-TR
    0.022700
    0.643702
    10
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2206-83YML-TR
    0.022700
    0.643702
    10
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
