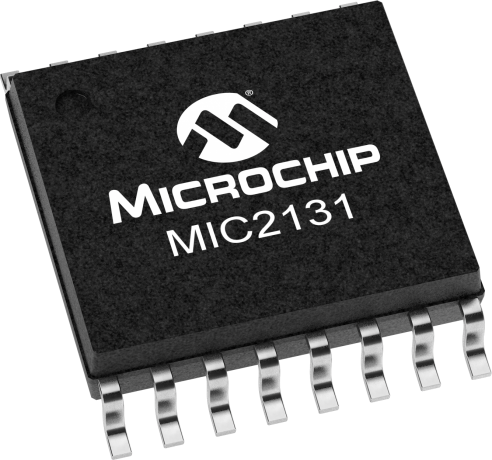

product primary image

MIC2131

40V Synchronous Buck Controller with Low EMI Option

Status: In Production

Features:

  • 8V to 40V input voltage range
  • Adjustable output voltages down to 0.7V
  • Low EMI option (MIC2131)
  • Fixed 150kHz and 400kHz frequency options
  • Excellent line and load regulation due to fast hysteretic control loop during transients
  • Adaptive gate drive allows efficiencies over 95%
  • Programmable current limit with no sense resistor
  • Senses low-side MOSFET current
  • Internal drivers allow 15A output current
  • Power Good output allow simple sequencing
  • Programmable soft-start pin
  • 100% increase in current limit (MIC2131)
  • Output over-voltage protection
  • Programmable Input UVLO
  • 16-pin e-TSSOP
  • Junction temperature range of -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2130/1 is a high voltage input PWM synchronous buck IC. It is a voltage mode controller with a fast hysteretic control loop (FHyCL) employed during fast line and load transients. The internal gate drivers are designed to drive high current MOSFETs.

The MIC2130/1 can produce output voltages down to 0.7V with input voltage from 8V to 40V. The MIC2130 family of control ICs implements fixed frequency PWM control. The active anti-shoot through drive scheme means a wide range of external MOSFETs may be used while maintaining optimum efficiency.

The MIC2130/1 is the fully functional version of the family and implements a new feature to minimize EMI. This function is critical for systems that need to be compliant with EMI standards throughout the world.

The MIC2131 is available in 16-pin e-TSSOP at a junction temperature range of -40°C to +125°C.

Additional Features
    • 8V to 40V input voltage range
    • Adjustable output voltages down to 0.7V
    • Low EMI option (MIC2131)
    • Fixed 150kHz and 400kHz frequency options
    • Excellent line and load regulation due to fast hysteretic control loop during transients
    • Adaptive gate drive allows efficiencies over 95%
    • Programmable current limit with no sense resistor
    • Senses low-side MOSFET current
    • Internal drivers allow 15A output current
    • Power Good output allow simple sequencing
    • Programmable soft-start pin
    • 100% increase in current limit (MIC2131)
    • Output over-voltage protection
    • Programmable Input UVLO
    • 16-pin e-TSSOP
    • Junction temperature range of -40°C to +125°C
Parametrics
Name
Value
Supported Topologies
Sync. Buck
Supported Outputs
1
Minimum Input Voltage (V)
8
Maximum Input Voltage (V)
40
Minimum Output Voltage (V)
0.7
Typical Tolerance (%)
±2
Duty Cycle Max (%)
0.92
Operating Frequency (Hz)
150K or 400K
Power Good Signal
True
Soft Start
True
Internal Voltage Bias
True
Enable Pin
True
Current Limit / Short Circuit Protection
True
Input UVLO Typ (V)
1.1
Operating Supply Current (mA)
4
Iq Off (µA)
180
Package
16/TSSOP, 16/4x4 MLF

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC2131 Evaluation Board
MIC2131 Evaluation Board ( MIC2131-EV )

This MIC2130/1 evaluation board is a high voltage input PWM synchronous buck converter. The MIC2130/1 is a voltage mode controller with a fast hysteretic control loop (FHyCL) employed during fast line and load transients. The MIC2130/1 has an internal transconductance error amplifier, gate drivers, current limit, enable and under voltage lock out and soft start circuitry. The internal gate drivers...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2131-1YTSE-TR
0.238548
16
TSSOP
4.4mm
Matte Tin
e3
MIC2131-1YTSE
0.163511
16
TSSOP
4.4mm
Matte Tin
e3
MIC2131-4YTSE
0.163511
16
TSSOP
4.4mm
Matte Tin
e3
MIC2131-4YTSE-TR
0.238548
16
TSSOP
4.4mm
Matte Tin
e3
MIC2131-1YML-TR
0.040900
0.820200
16
VQFN
4x4x0.9mm
NiPdAu
e4
MIC2131-4YML-TR
0.040900
0.820200
16
VQFN
4x4x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
