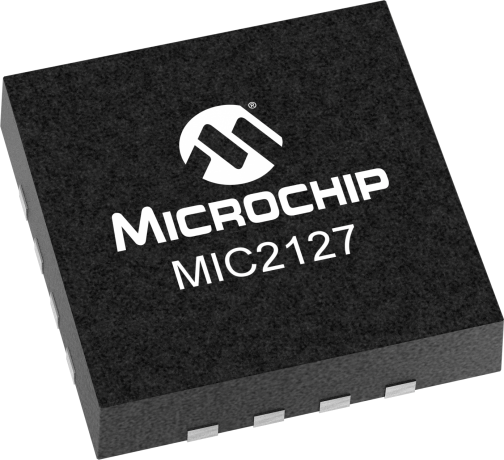

MIC2127

Status: Not Recommended for new designs

Features:

  • Hyper Speed Control® architecture enables:
  • High delta-V operation
  • Any Capacitor™ stable
  • 4.5V to 75V input voltage
  • Adjustable output voltage from 0.6V to 30V
  • 200kHz to 800kHz programmable switching frequency
  • Internal soft start
  • Enable input and power good output
  • Built-in 5V regulator for single-supply operation
  • Programmable current limit and "hiccup" mode short-circuit protection
  • Internal compensation, and thermal shutdown
  • Supports safe start-up into a pre-biased output
  • -40°C to +125°C junction temperature range
  • Available in 16-pin 3mm x 3mm QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2127A is a constant-frequency synchronous buck controllers featuring a unique adaptive ON-time control architecture. The MIC2127A operates over an input voltage range from 4.5V to 75V and can be used to supply load current up to 25A (Thermally Limited) . The output voltage is adjustable down to 0.6V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 200kHz to 800kHz.

The MIC2127A offers a full suite of protection features to ensure protection of the IC during fault conditions. These include undervoltage lockout to ensure proper operation under power-sag conditions, Internal Soft Start, "hiccup" mode short-circuit protection, and thermal shutdown.

Please consider this device MIC2127A

Additional Features
    • Hyper Speed Control® architecture enables:
      • High delta-V operation
      • Any Capacitor™ stable
    • 4.5V to 75V input voltage
    • Adjustable output voltage from 0.6V to 30V
    • 200kHz to 800kHz programmable switching frequency
    • Internal soft start
    • Enable input and power good output
    • Built-in 5V regulator for single-supply operation
    • Programmable current limit and "hiccup" mode short-circuit protection
    • Internal compensation, and thermal shutdown
    • Supports safe start-up into a pre-biased output
    • -40°C to +125°C junction temperature range
    • Available in 16-pin 3mm x 3mm QFN package
Parametrics
Name
Value
Supported Topologies
COT
Supported Outputs
1
Minimum Input Voltage (V)
4.5
Minimum Output Voltage (V)
0.6
Maximum Output Voltage (V)
30
PFM, Discontinuous, Hyperlight load, or Skip Mode
False
Typical Tolerance (%)
1
Duty Cycle Max (%)
85
Operating Frequency (Hz)
200KHz to 800KHz
External Clock Sync
False
Power Good Signal
True
Soft Start
True
Internal Compensation
True
Internal Voltage Bias
True
Enable Pin
True
Current Limit / Short Circuit Protection
True
Input UVLO Typ (V)
4.2
Operating Supply Current (mA)
1.4
Iq Off (µA)
0.1
Package
3X3 mm QFN

Documents

Jump to:

User Guides


1088KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2127AYML-T5
0.021400
0.516430
16
VQFN
3x3x0.9mm
NiPdAu
e4
MIC2127AYML-TR
0.021400
0.516430
16
VQFN
3x3x0.9mm
NiPdAu
e4
MIC2127AYML-TRVAO
0.021400
0.516430
16
VQFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
