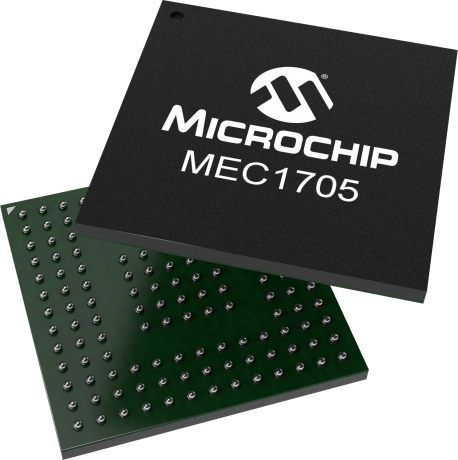

product primary image

MEC1705

Embedded Controller

Status: In Production

Features:

  • ARM® Cortex®-M4F Processor Core
  • Complete ARM-Standard Debug Support
  • Comprehensive ARM-Standard Trace Support
  • Internal Memory: up to 480KB of SRAM
  • Enhanced Serial Peripheral Interface (eSPI) - Intel eSPI Specification Compliant
  • Supports LPC Bus frequencies of 19MHz to 33MHz
  • Four EC-based SMBus 2.0 Host Controllers
  • Five independent Hardware Driven PS/2 Ports
  • One Quad Serial Peripheral Interface (SPI) Controller
  • 18 x 8 Interrupt Capable Multiplexed Keyboard Scan Matrix
  • Four Breathing/Blinking LED Interfaces
  • Multi-purpose AES Cryptographic Engine: Hardware support for ECB, CTR, CBC and OFB AES modes
  • Cryptographic Hash Engine: Support for SHA-1, SHA-256, SHA-512
  • Public Key Cryptographic Engine: Hardware support for RSA and Elliptic Curve public key algorithms andRSA keys length of 1024 or 2048 bits
  • True Random Number Generator: 1K bit FIFO
  • Monotonic Counter
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

MEC1705 is customized for embedded and industrial computing platforms.  It is available in extended temperature range of -40oC to +85oC. 2 UARTS and includes EEPROM included.

The family MEC17xx is a highly-configurable, mixed signal, advanced I/O controller architecture. Every device in the family incorporates a 32-bit ARM Cortex M4F Microcontroller core with a closely-coupled SRAM for code and data. A secure bootloader is used to download the custom firmware image from the system’s shared SPI Flash device, thereby allowing system designers to customize the device’s behavior.

MEC170x products may be configured to communicate with the system host through one of three host interfaces: Intel Low Pin Count (LPC), eSPI, or I2C. This family’s products are designed to operate as either a stand-alone I/O device or as an EC Base Component of a split-architecture Advanced I/O Controller system which uses BC-Link communication protocol to access up to two BC bus companion components. The BC-Link protocol is peer-to-peer providing communication between the MEC170x embedded controller and registers located in a companion device.

Similar Products:  MEC1701, MEC1704, MEC1418, MEC1428

Family parts
MEC1705Q-C2-I/SZ

Additional Features
    • ARM® Cortex®-M4F Processor Core
    • Complete ARM-Standard Debug Support
    • Comprehensive ARM-Standard Trace Support
    • Internal Memory: up to 480KB of SRAM
    • Enhanced Serial Peripheral Interface (eSPI) - Intel eSPI Specification Compliant
    • Supports LPC Bus frequencies of 19MHz to 33MHz
    • Four EC-based SMBus 2.0 Host Controllers
    • Five independent Hardware Driven PS/2 Ports
    • One Quad Serial Peripheral Interface (SPI) Controller
    • 18 x 8 Interrupt Capable Multiplexed Keyboard Scan Matrix
    • Four Breathing/Blinking LED Interfaces
    • Multi-purpose AES Cryptographic Engine: Hardware support for ECB, CTR, CBC and OFB AES modes
    • Cryptographic Hash Engine: Support for SHA-1, SHA-256, SHA-512
    • Public Key Cryptographic Engine: Hardware support for RSA and Elliptic Curve public key algorithms andRSA keys length of 1024 or 2048 bits
    • True Random Number Generator: 1K bit FIFO
    • Monotonic Counter
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
Customer Programmable RAM
Yes
Host Interface
eSPI, LPC, I2C
Crypto Engine
Yes
Code Storage
480 KB (Code + Data)
Operating Temperature
-40C to +85C
Deep Sleep S5
Yes
Fan Tachometer Inputs
2
Max Operating Frequency
48 MHz
8024 Keyboard Controller
Yes
Data RAM
32 KB
Breathing/ Blinking LED
4
GPIO
148
Package
144-WFBGA (SZ)
LED
4
Analog to Digital Converter
8
BC Link
2
AMD SB-TSI
1
ACPI Interfaces
5

Documents

Jump to:

Brochures

11/06/2017
833KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MEC1705Q-C2-I/SZ
0.128300
0.826923
144
WFBGA
9x9x0.8mm
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
