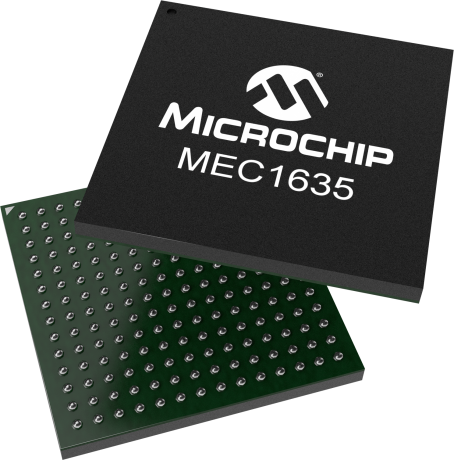

The MEC1635 is the mixed signal base component of a multi-device advanced I/O controller architecture, which incorporates a high-performance 32-bit ARC 625D embedded microcontroller with a 192KB Embedded Flash Subsystem, 16KB of SRAM and a 1KB EEPROM Emulation. The MEC1635 communicates with the system host using the Intel® Low Pin Count bus.

This product is the Embedded Controller Base Component of a split-architecture Advanced I/O Controller system that uses BC-LinkTM communication protocol to access up to three companion components. MEC1635 is directly powered by two separate suspend supply planes (VBAT and VTR) and senses a third runtime power plane (VCC) to provide “instant on” and system power management functions. Integrated VTR Reset Interface and a system Power Management Interface that supports low-power states and can drive state changes as a result of hardware wake events as defined by the MEC1635 Wake Interface included.

Family parts
MEC1635X-AVE

• ARC-625D system controller
• 196 LFBGA package
• Embedded flash
• 192KB Flash
• 16KB RAM (65B CMOS)
• 2K bytes EEPROM
• 18x8 keyboard scan matrix
• 153 GPIO
• 12 SMBus ports
• 16 analog to digital converter channels
• 3 LED
• 4 low-power timers
• 6 external diodes, 1 internal diode (temperature monitoring)
• 16 PWM
• 6 Fan Tachometer Inputs
• MCU Serial Debug Port
• Two pin serial debug port with 16C550A register interface
• Flexible Flash programming interface
• Port 80 BIOS Debug Port
• Gang Programmer interface
• JTAG interface
