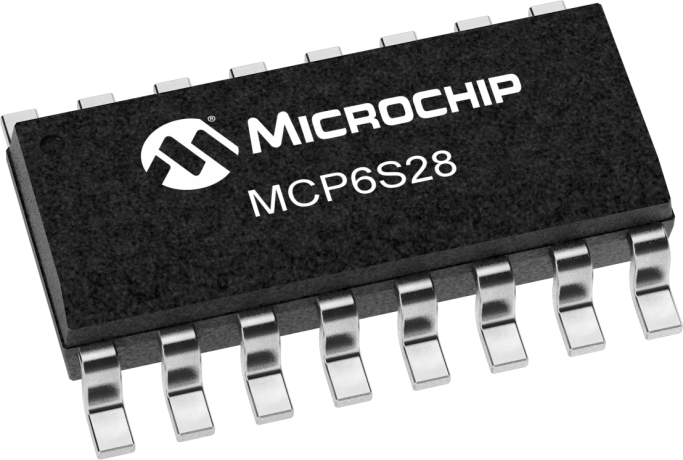

MCP6S28

Status: In Production

Features:

  • SPI Bus to Control Gain and Select Input Channel
  • Gain Steps of 1, 2, 4, 5, 8, 10, 16 and 32 V/V
  • -3 dB Bandwidth of 2 to 12 MHz
  • VOS < 150 µV
  • Gain Error < 1%
  • Rail-to-Rail Input and Output
  • Low Noise: 10 nV/rHz
  • Low Supply Current: 1.1 mA (typical)
  • Single Supply 2.5V to 5.5V
  • Industrial Temperature Range: -40°C to 85°C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP6S21, MCP6S22, MCP6S26, and MCP6S28 Programmable Gain Amplifiers offer 1, 2, 6 or 8 input channels respectively and eight steps of gain. These devices are programmable over an SPI bus and thus add gain control and input channel selection to the embedded control system. This is all achieved in one simple integration that allows for considerable greater bandwidth at a low supply current.

Additional Features
    • SPI Bus to Control Gain and Select Input Channel
    • Gain Steps of 1, 2, 4, 5, 8, 10, 16 and 32 V/V
    • -3 dB Bandwidth of 2 to 12 MHz
    • VOS < 150 µV
    • Gain Error < 1%
    • Rail-to-Rail Input and Output
    • Low Noise: 10 nV/rHz
    • Low Supply Current: 1.1 mA (typical)
    • Single Supply 2.5V to 5.5V
    • Industrial Temperature Range: -40°C to 85°C
Parametrics
Name
Value
Temp Range (°C)
2
Vref
Yes
Vos (µV)
275
Channels
8
Noise (nV/√Hz)
10
Iq Typical (mA)
1.1
Gain Steps
8
-3dB BW (MHz)
2 to 12
Interface
SPI
Operating Voltage Range (V)
2.5 to 5.5

Documents

Jump to:

Data Sheets

06/23/2015
724KB

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP6S2x PGA Evaluation Board
MCP6S2x PGA Evaluation Board ( MCP6S2XEV )

The MCP6S2X PGA Evaluation Board (Rev. 4) features the MCP6S21/91 and MCP6S26 devices. The PGA devices interface to a PIC16F676 providing versatile selection of input channels and gains to evaluate device performance. The board supports multiple input signal sources and two devices are cascaded to produce a gain between 1 V/V and 1024 V/V.

Learn More
Add To Cart

Similar Devices

Product
Switching Channels
-3dB Bw (MHz)
Iq Typical (mA)
Vos (µV)
Price 5K
1
2 to 12
1.1
275
$0.80
2
2 to 12
1.1
275
$0.92
6
2 to 12
1.1
275
$1.46
8
2 to 12
1.1
275
$1.62
1
1 to 18
1
4000
$0.62
2
1 to 18
1
4000
$0.73
2
1 to 18
1
4000
$0.92
