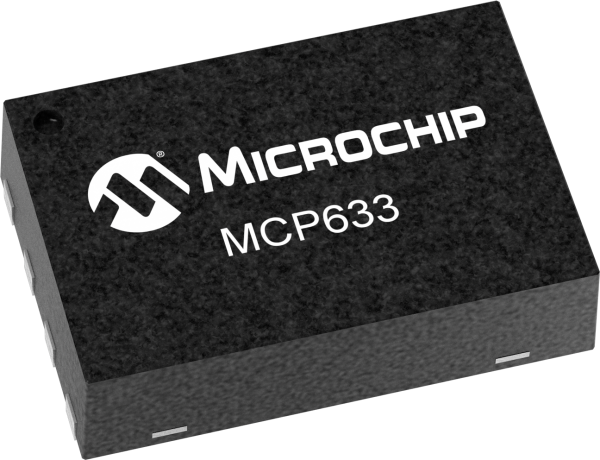

MCP633

Status: In Production

Features:

  • Chip Select Pin
  • Rail-to-Rail Output
  • High Output Drive Current
  • Low Noise
  • 24MHz of Gain Bandwidth
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP63x family of operational amplifiers features high gain bandwidth product and high output short circuit current. Some devices also provide a Chip Select pin that supports a low power mode of operation. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail.

Additional Features
    • Chip Select Pin
    • Rail-to-Rail Output
    • High Output Drive Current
    • Low Noise
    • 24MHz of Gain Bandwidth
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
8000
# per Package
1
Iq Typical (µA)
2500
Iq Max (µA)
3600
GBWP (kHz)
24000
Operating Voltage Range (V)
2.5 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
10
PSRR Min (dB)
61
CMRR Min (dB)
63
Vos/Ta (uV/°C)
2
Ib (pA)
4
Aol (dB)
115
PM (deg)
65
Isc (mA)
70
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
10

Documents

Jump to:

Board Design Files


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP633-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP633T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP633T-E/CHY
0.016450
0.046667
6
SOT-23
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
