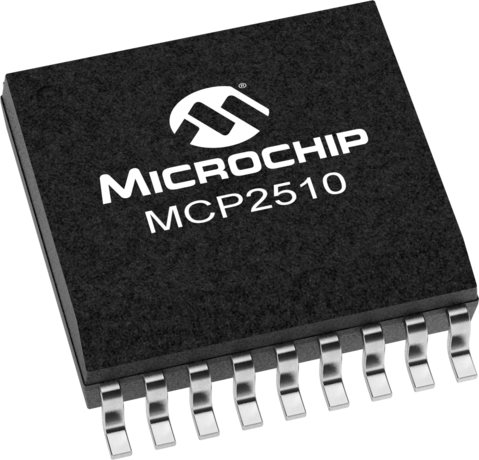

MCP2510

External CAN Controller with SPI Interface

Status: Not Recommended for new designs

Features:

  • 18-pin package
  • Simple SPI interface to any MCU
  • Databyte filtering
  • Start-of-Frame (SOF) output
  • Low-power CMOS Technology
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP2510 18-pin stand-alone CAN (Control Area Network) controller features an industry standard SPI serial interface, enabling an easy connection to virtually any microcontroller. The MCP2510 provides immediate CAN support across the entire breadth of Microchip’s 100+ PICmicro® microcontrollers, providing a seamless migration path and maximum design flexibility for CAN designs. The MCP2510 contains on-board features, such as interrupt capability, message masking and filtering, message prioritization, multi-purpose I/O pins, and multiple transmit/receive buffers which significantly offload the microcontroller overhead required to handle CAN message traffic. Applications for the MCP2510 include motor control, smoke detectors, CO detectors, sensors, meters, automotive electronics, climate control and instrument clusters.

Please consider this device MCP2515

Additional Features
  • 18-pin package
  • Simple SPI interface to any MCU
  • Databyte filtering
  • Start-of-Frame (SOF) output
  • Low-power CMOS Technology
Parametrics
Name
Value
Tx Buffers
3
Rx Buffers
2
Masks
2
Interrupt Output
1
Filters
6
Temp. Range (°C)
-40 to 125
Operating Voltage Range (V)
3.0 to 5.5

Documents

Jump to:

Data Sheet

01/24/2007
998KB

Errata

Product Line Card

User Guides

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
CAN BUS Analyzer Tool
CAN BUS Analyzer Tool ( APGDT002 )

The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine. The toolkit comes with all the hardware and software required to connect a CAN...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2510-E/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
MCP2510-I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
MCP2510-E/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
MCP2510-I/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
MCP2510T-E/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
MCP2510T-I/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
MCP2510-I/ST
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
MCP2510T-I/ST
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
